Installation Parameters |
|
|
Supported Hole Diameter |
16.5~5 mm |
|
Supported Door Diameter |
35~105mm |
|
Camera Parameters |
|
|
Sensor |
1/3" Progressive Scan CMOS |
|
Lens |
2.0mm @ F2.2, visual angle (diagonal): 155° |
|
Day/Night Switch |
ICR infrared filter |
|
IR Distance |
Max. 5m |
|
Max. Resolution |
1080p / 2MP |
|
Video Frame Rate |
15fps |
|
PIR Detection |
|
|
Angle |
110° |
|
Distance |
Max. 6m |
|
Sensitivity |
Adjustable |
|
Interface |
|
|
Storage Interface |
MicroSD card slot (max. 256GB) |
|
Audio Input |
Built-in high sensitivity microphone |
|
Audio Output |
Built-in high-power speaker |
|
Buttons |
Doorbell button, power button, Screen wake up button |
|
Network |
|
|
Face Detection |
Does not support |
|
Intelligence Alarm |
PIR motion detection |
|
Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Video Intercom |
Local and remote video intercom |
|
General Function |
Cloud video encryption and image encryption |
|
Wireless |
|
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n |
|
Frequency Range |
2.4GHz~2.4835GHz |
|
Channel Bandwidth |
Supports 20MHz |
|
Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
|
Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps |
|
General |
|
|
Screen |
4.3" colour screen |
|
Colour |
Silver |
|
Operating Conditions |
-10°C~45°C, Humidity 95% or less (non-condensing) |
|
Power Supply |
DC 5V (±10%) |
|
Power Consumption |
Max. 2.2W |
|

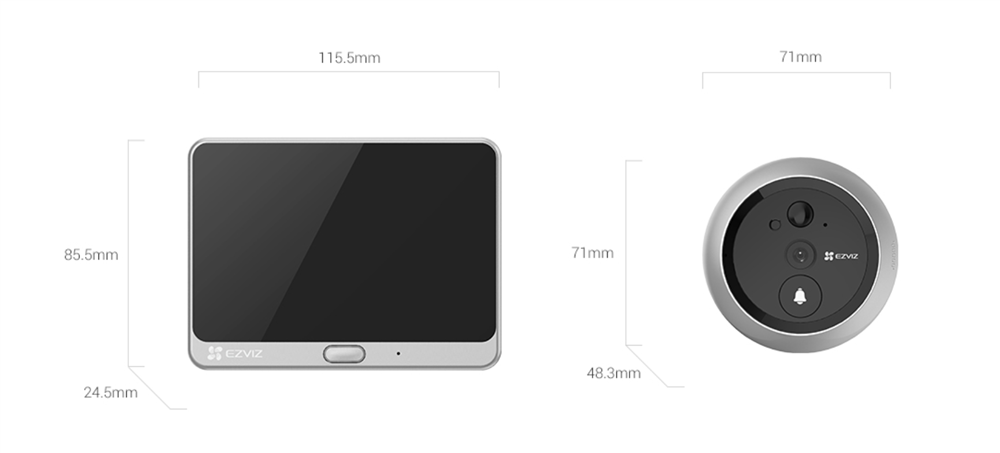

Dimension |
Screen and Base: 115.5 x 85.5 x 24.5mm |
|
Peephole Doorbell: 71 x 71 x 48.3mm |
|
|
Weight |
302 g |
|
In the box |
|
|
In the box |
- DP2C Peephole Doorbell |
|
- Panel |
|
|
- Mounting Base |
|
|
- Power Cable (1m) |
|
|
- Screws × 6 |
|
|
- Quick Start Guide |
|
