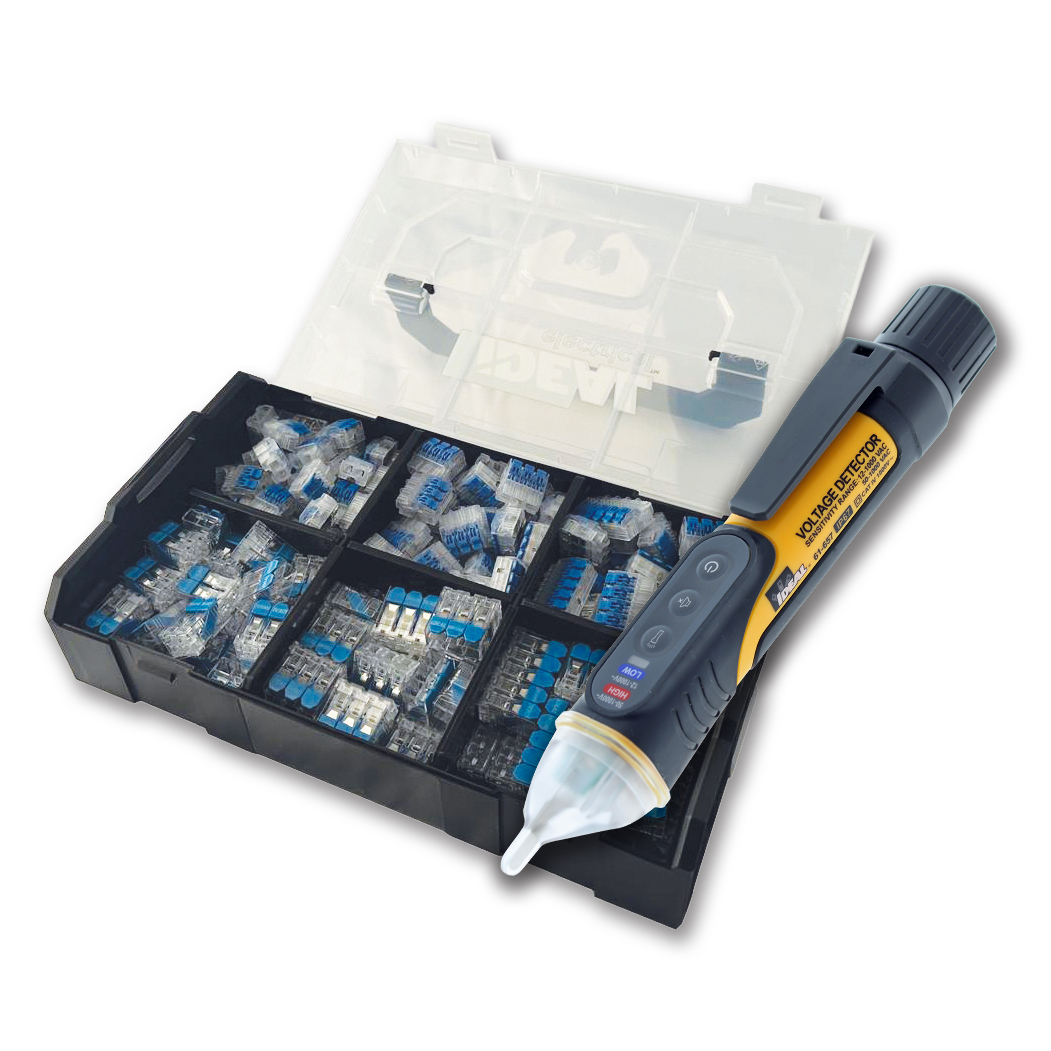

30-5023EU + IDL61-657

30-5023EU
200 Piece 6mm & 4mm Lever connecor kit, Includes;

6mm

• 35x 2-port
• 25x 3-port
• 15x 5-port

4mm

• 60x 2-port
• 40x 3-port
• 25x 5-port

The IDEAL lever connectors are the perfect solution for solid, stranded and flexible wires, offering secure connections every time without compromising on quality or price.
Electrical professionals save time and money on site while achieving easier, more consistent terminations for wires up to either 4mm2 (12AWG) and 32 Amps or 6 mm2 (10AWG) and 41 Amps.

Features:

• 4 mm2 wire connector for use in all applications up to 32A, including lighting, access control, radial and final ring circuits
• 6 mm2 wire connector for use in applications drawing larger currents up to 41A.
• Releasable connector – for solid, stranded and flexible wires
• Easy to use - no need to lift the levers when using on solid wire on all wire sizes for 4mm2 and on 2.5, 4 and 6 mm2 wire for the 6mm2 version.
• Continuity check port and strip length guide
• Clear window at the bottom of the connector - allows for visual verification of the connection
• Secure your cables in seconds – optimised spring design for easy open and strong bite
• AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.2 and UL 486C compliant
• CE, UKCA, UL and ENEC approved

IDL61-657
The IDEAL 61-657 is CAT IV 1000V AC, IP67 UL Listed, Dual Range Non-Contact Voltage Tester that automatically detects and indicates the presence of voltages between 12V to 1000V AC (Low Range) and 50V to 1000V AC (High Range) with the push of a button. The tester can sustain a drop from 2m and provides non-contact detection of voltage through an antenna enclosed in plastic at the tip of the tester which senses the presence of the electromagnetic field present around live conductors. The tip is illuminated by a green LED when powered on and switches to a red flashing LED, and audible beeps that increase in frequency as the voltage level increases. The tester is powered by two 1.5V AAA batteries and features an in-tip LED flashlight, an audible disable function, a lanyard tie-off point, an auto power-off function and a low battery indication.

• UL Certified CAT IV 1000V AC, 12V-1000V AC Low Range, 50 to 1000 V AC High Range
• Senses 2 voltage ranges from 12V to 1000V AC (Low ) or 50 to 1000V AC (High) allowing detection of low voltages (doorbells, thermostats, irrigation wiring, etc.) and standard voltage in tamper-resistant outlets when the tip is located near the Hot receptacle and/or Hot Connection point on the outlet.
• Dust Tight and Waterproof (1m for 30 minutes) Industrial Design makes this tester easy to grip and capable of sustaining a drop from 2m.
• An LED Flashlight in the tip operates independently of the tester functions and can be used to illuminate the work area. Press the Flashlight Button to turn it On/Off. The tester is set to Flashlight Off. The Flashlight will Auto Power Off after 5 minutes.
• Audible Notification Disable - The tester can be operated with a visual-only indication of voltage when working in a noise-sensitive/noise-restricted area with the simple press of a speaker button.
• Auto Power Off - After 10 minutes of inactivity (no button pressed and no signals detected), the tester will emit one long beep (~0.5s) and then shut off. Note: if the flashlight is on, it will be also shut off.
• Low Battery Indication - If the battery voltage is less than around 2.4V, the green LED in the tip will flash 3 times and the buzzer will send out one long beep, then turn off the device.
