Key Feature

• Up to 32-ch IP camera inputs, plug & play with 16 power-over-Ethernet (PoE) interfaces
• H.265+/H.265/H.264+/H.264 video formats
• Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
• Up to 256 Mbps incoming bandwidth

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%
• Adopt stream over TLS encryption technology which provides more secure stream transmission service

HD Video Output

• Provide independent HDMI and VGA outputs
• HDMI video output at up to 4K resolution

Storage and Playback

• Up to 2 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)
• 16-ch synchronous playback

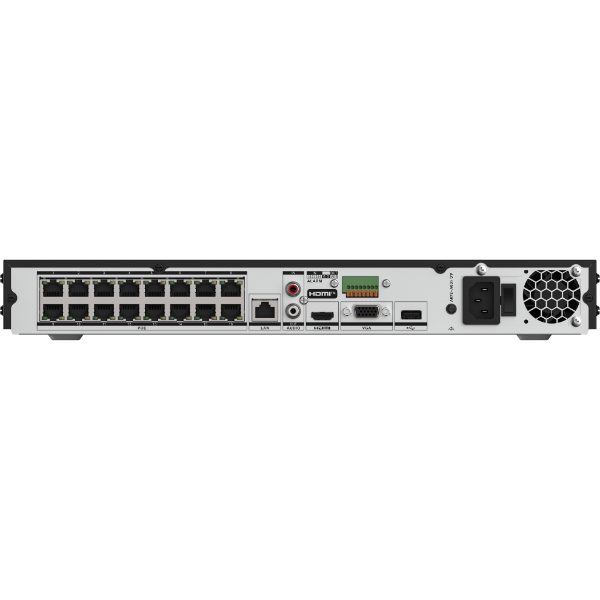

Network & Ethernet Access

• 16 independent PoE network interfaces
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• HiLookVision for easy network management

NVR K Series Supports up to 4 channels @ 8MP decoding

NVR C Series Supports only 1 channel @ 8MP decoding

For systems using higher-resolution cameras, the K Series is the recommended choice, as it can display multiple high-resolution streams simultaneously without issue.

For C Series NVRs when the decoding limit is exceeded, the NVR will automatically switch some cameras to the sub-stream for Live View, resulting in a lower display resolution on the monitor. This is generally acceptable for budget-conscious cases where full-resolution live viewing is not a priority.
