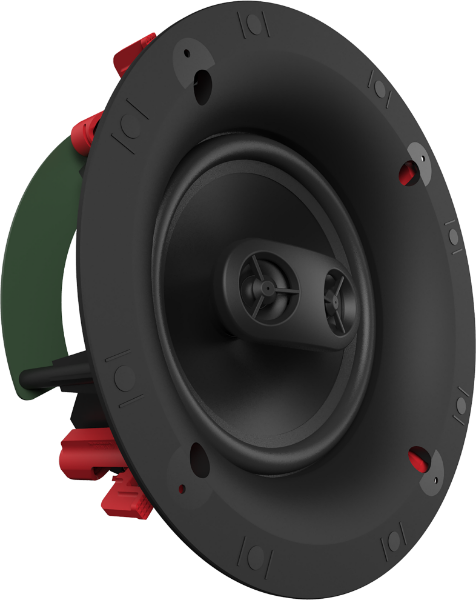

The Klipsch CS-16CSM is a 6.5" stereo in-ceiling speaker from the Custom Series line, designed to deliver high-quality Klipsch sound to any room in a distributed audio system. This speaker brings the same design principles used in Klipsch's premium architectural and box speaker lines to a budget-friendly format.
Key Features
- Dual Voice Coil Design for True Stereo Sound

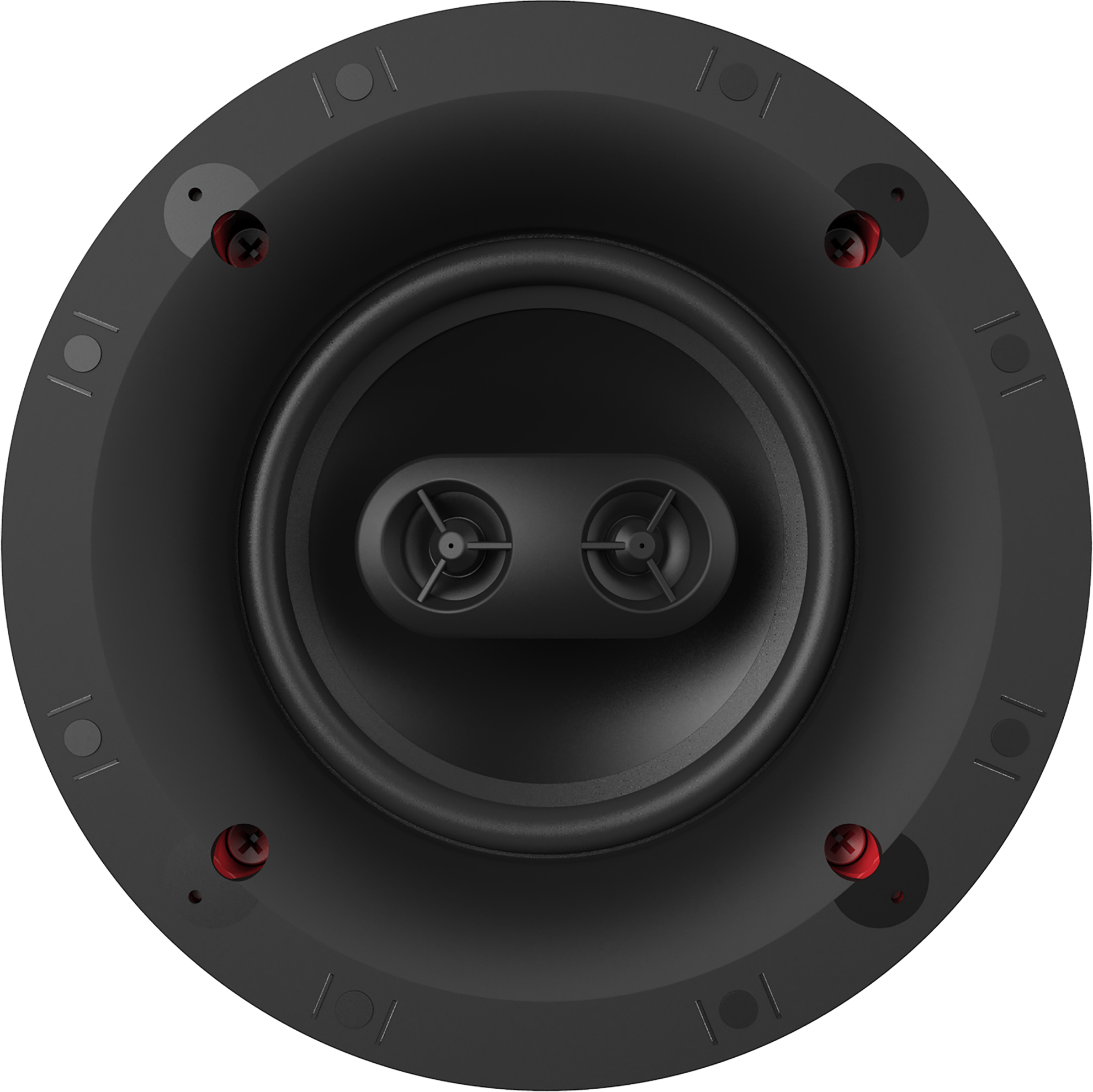

The CS-16CSM features dual .75" (19mm) Polymer Dome Tweeters paired with a 6.5" (165.1mm) Dual Voice Coil Polymer Woofer, enabling a single speaker to produce true stereo sound. This makes it ideal for spaces where installing two separate speakers isn't practical.
- Sky Hook® Cinch Installation System

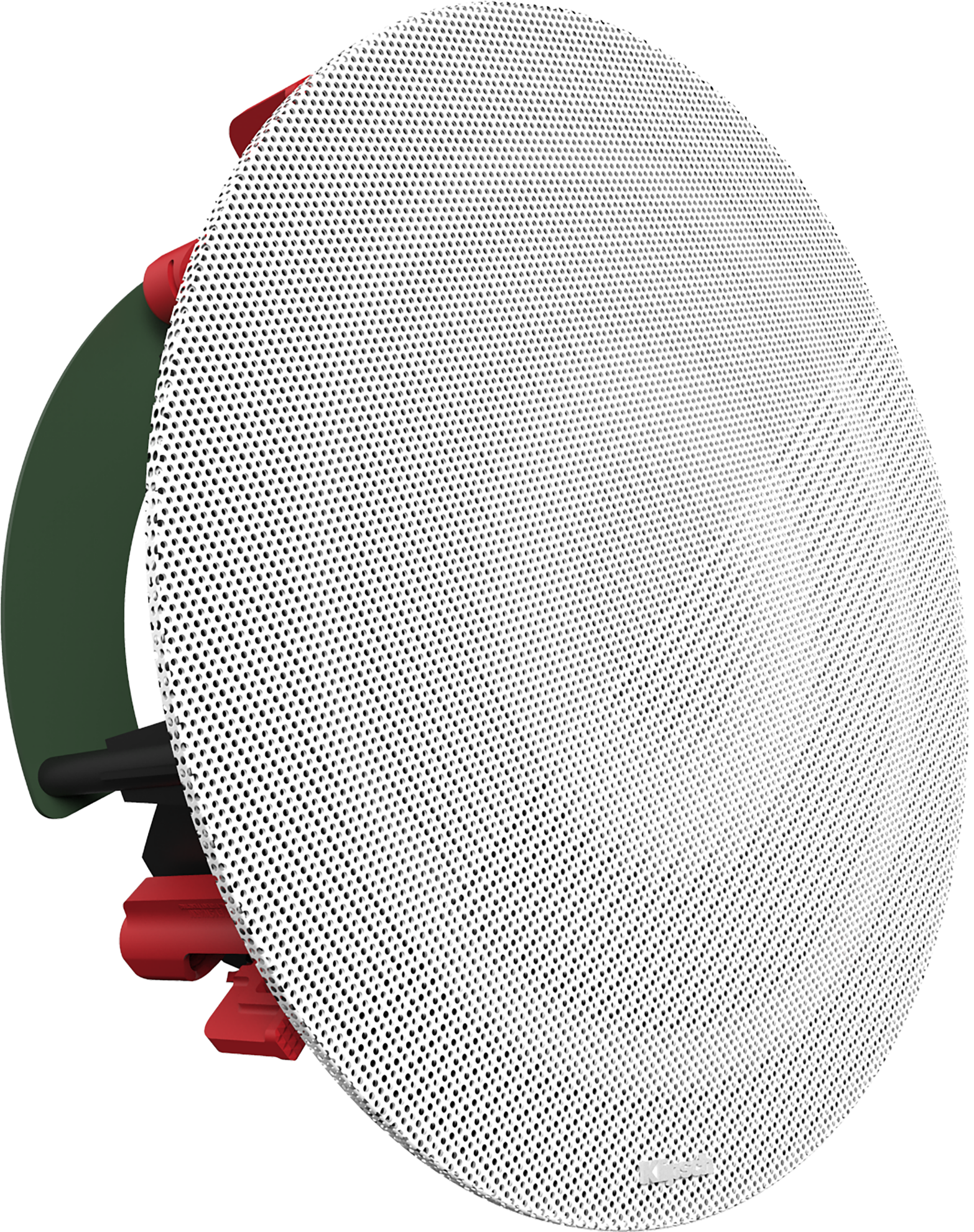

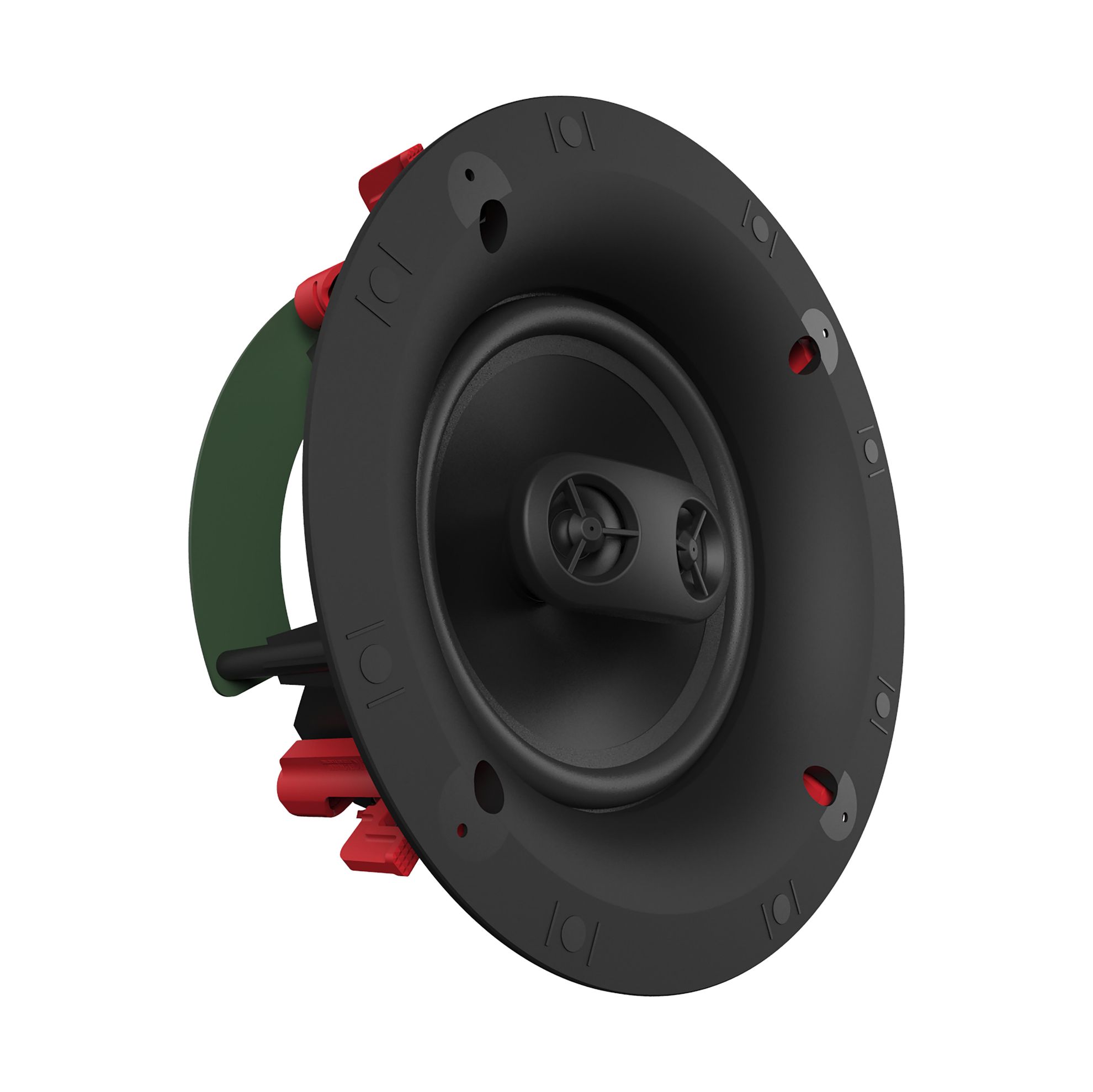

This exclusive patented installation system automatically engages the dog legs when the speaker is inserted into the cutout hole, providing a preset clamping force. The system can reduce installation time by up to 75%.

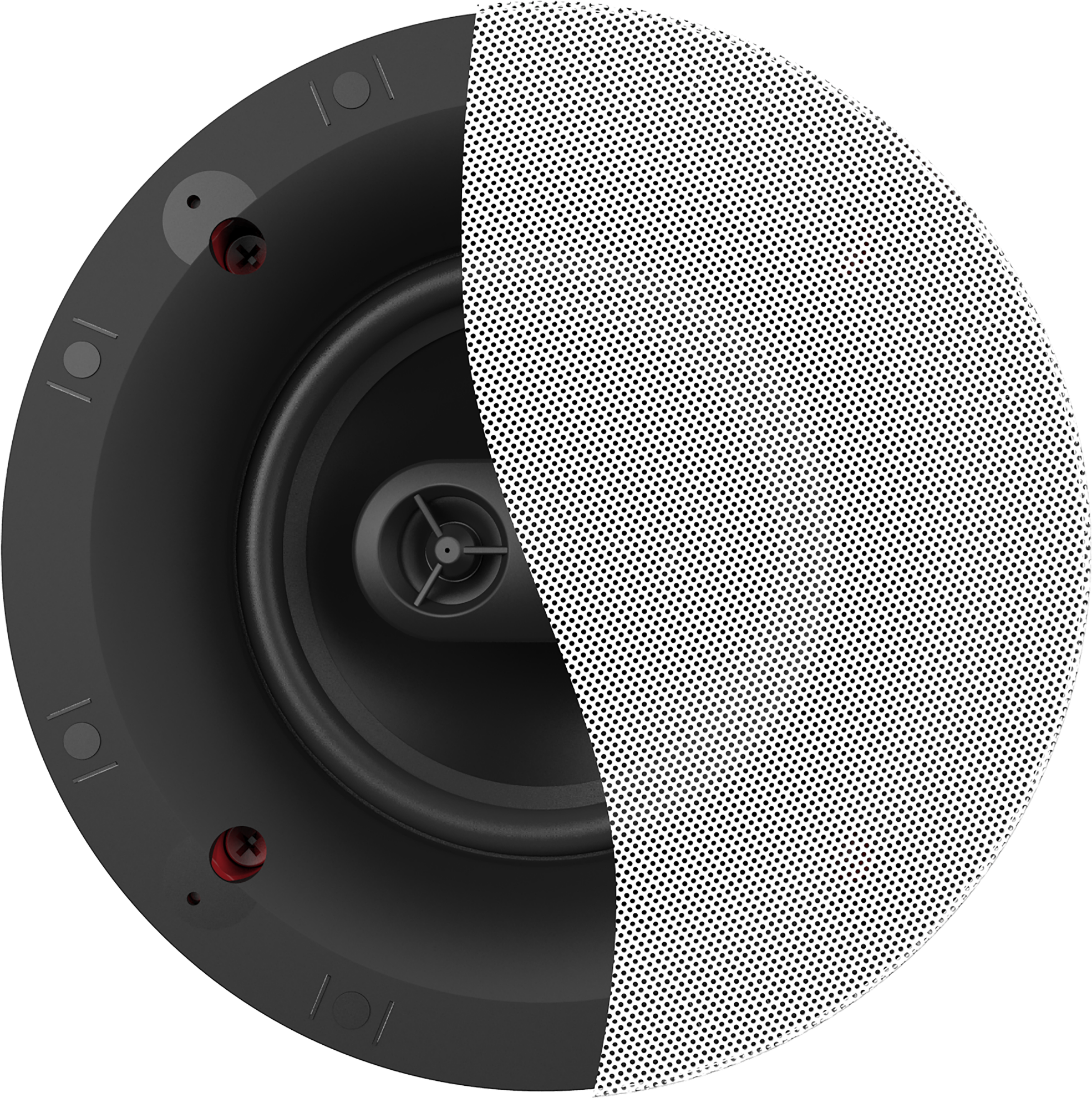

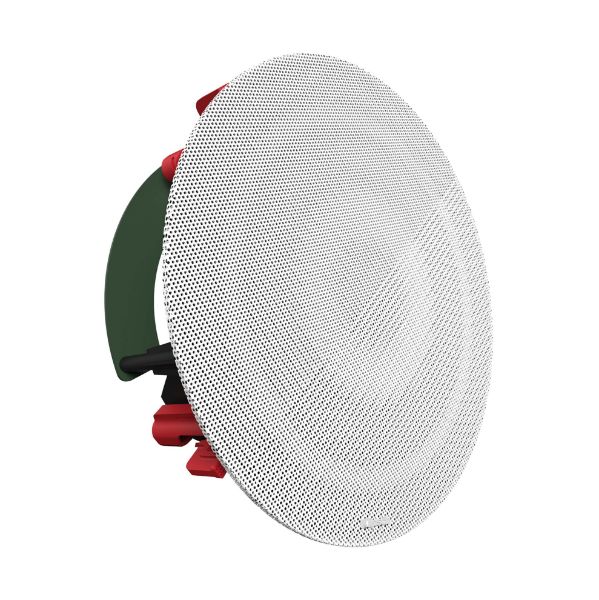

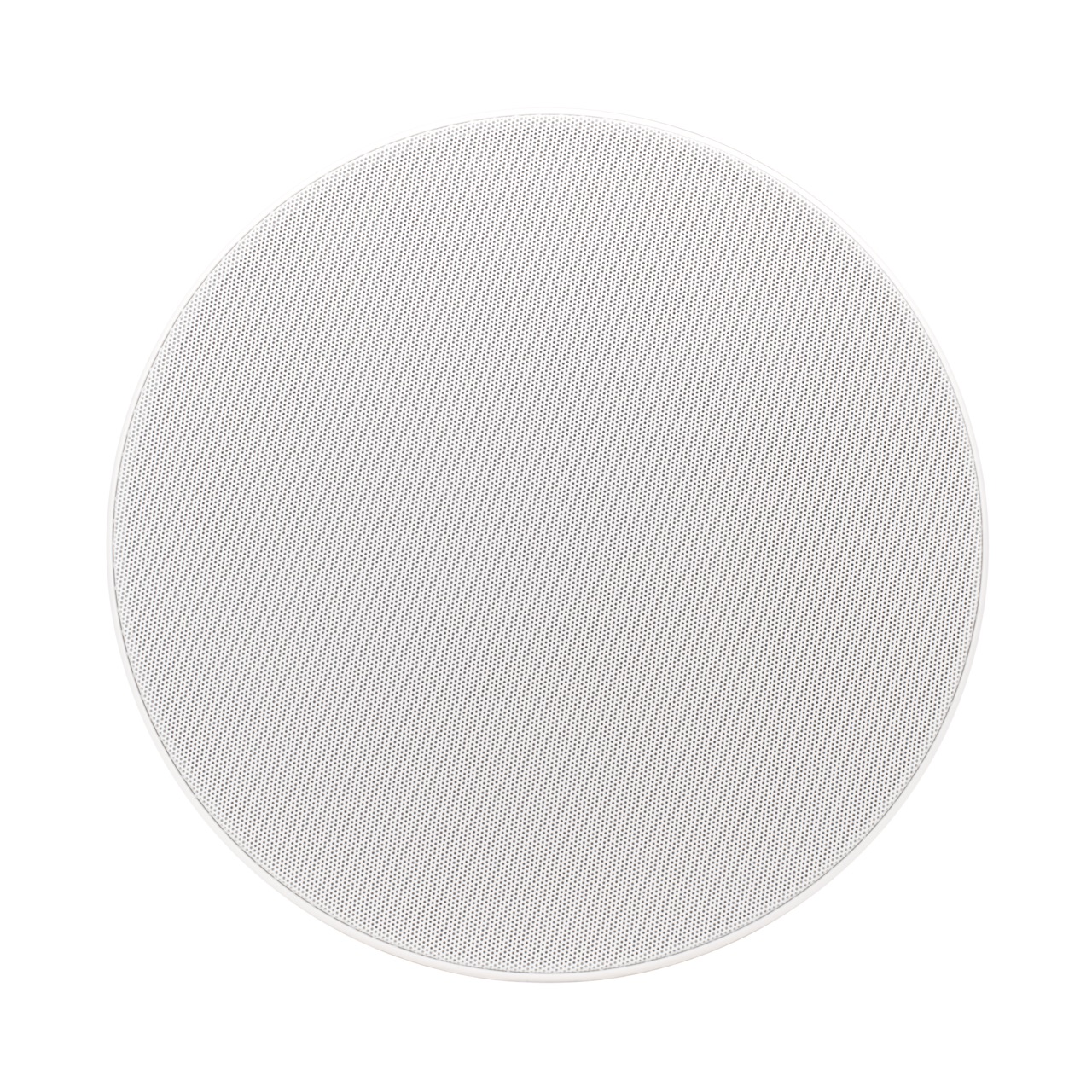

- Bezel-Free Magnetic Grille

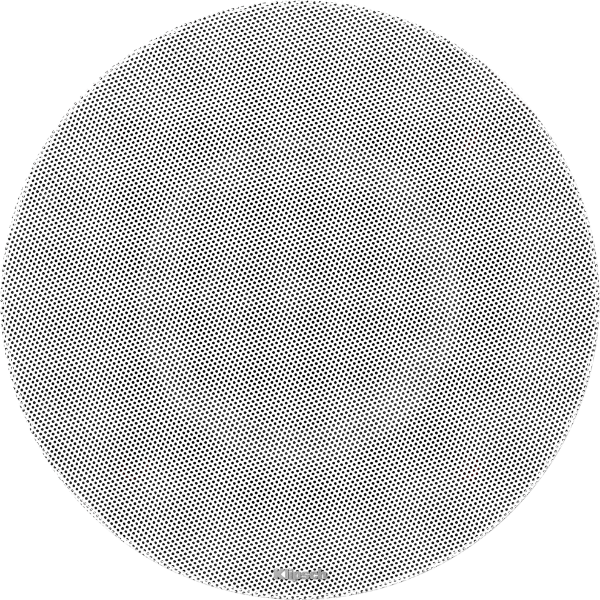

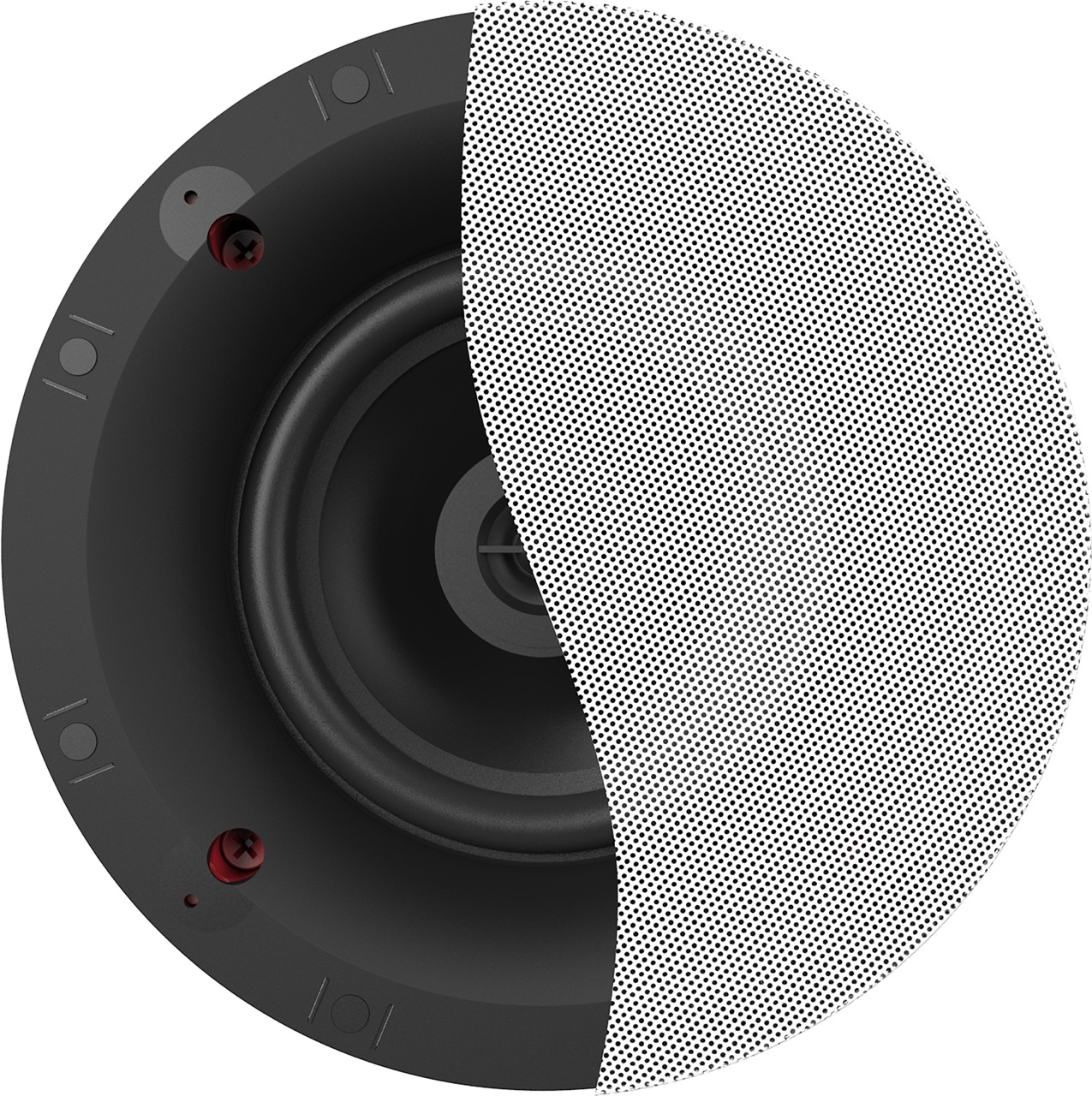

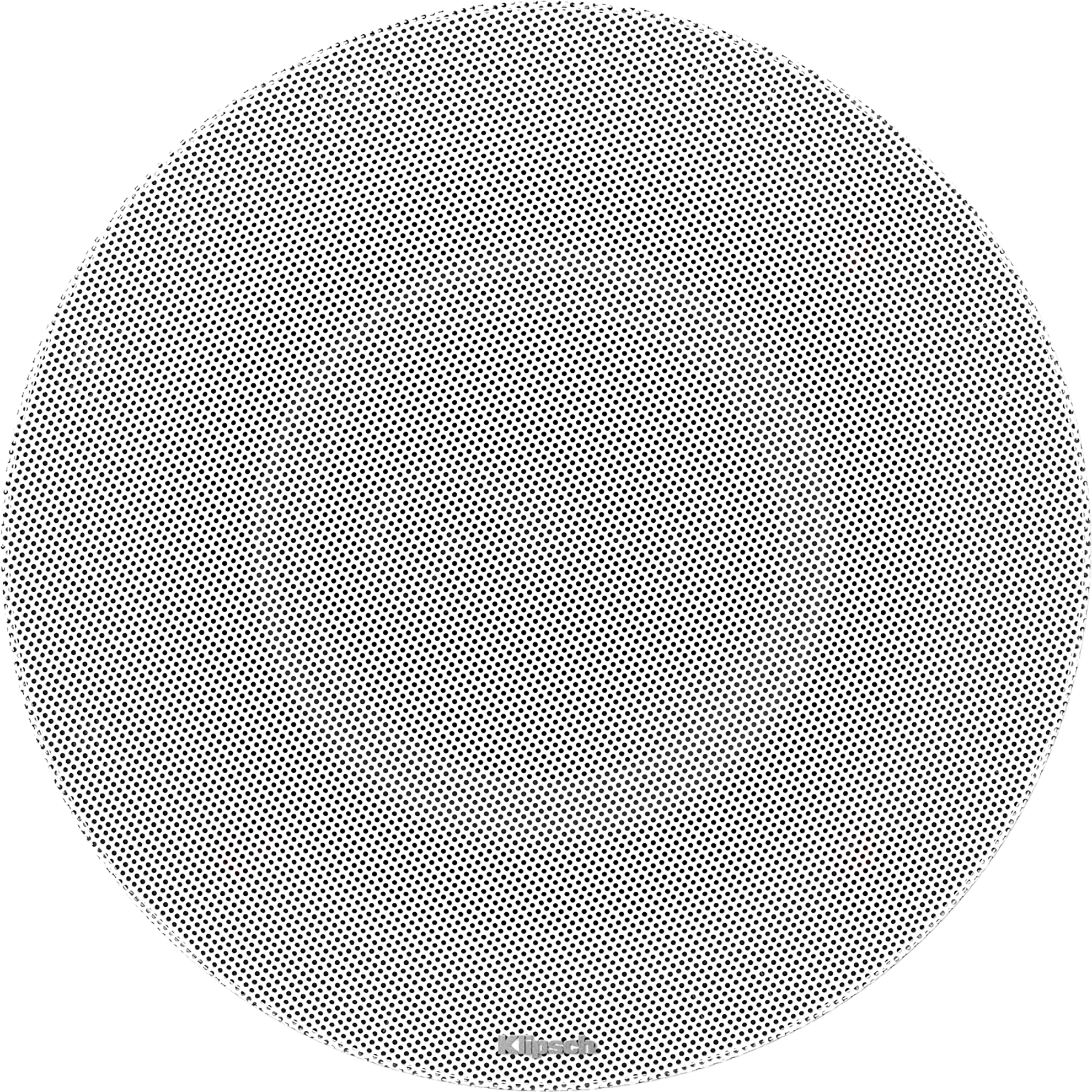

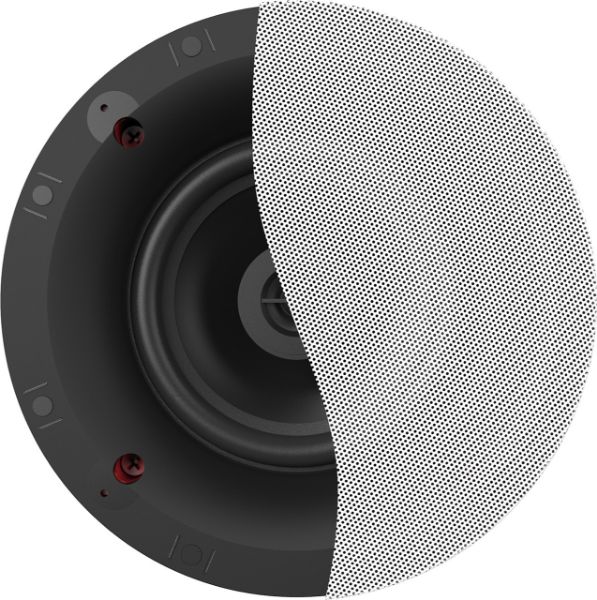

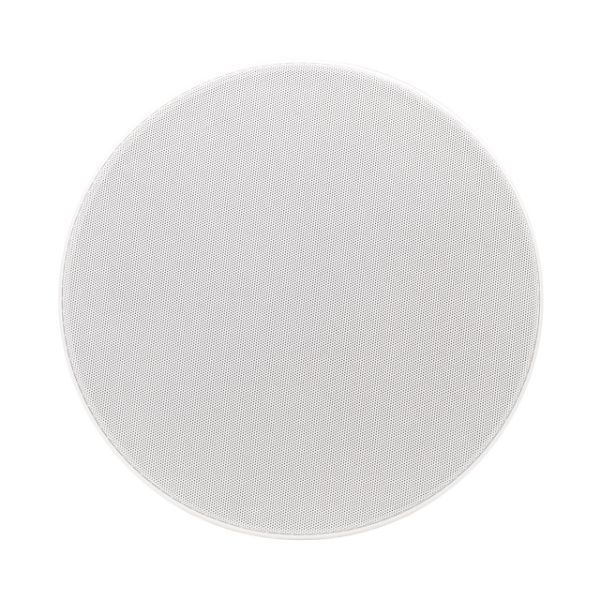

The completely redesigned powder-coated magnetic steel grille eliminates the bezel for seamless, pristine integration into your ceiling. The grille attaches magnetically for a clean, modern appearance.
Performance Specifications
- Frequency range: 65Hz - 20kHz +/- 3dB
- Sensitivity: 91 dB @ 2.83V / 1m
- Power handling: 40W RMS / 160W Peak
- Impedance: 8 Ohm Compatible
- Cutout dimensions: 7.99" (203mm)
- Mounting depth: 3.98" (101mm)
