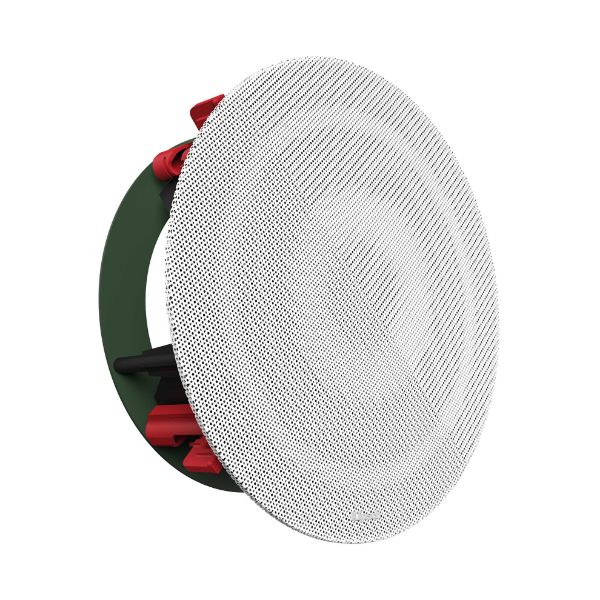

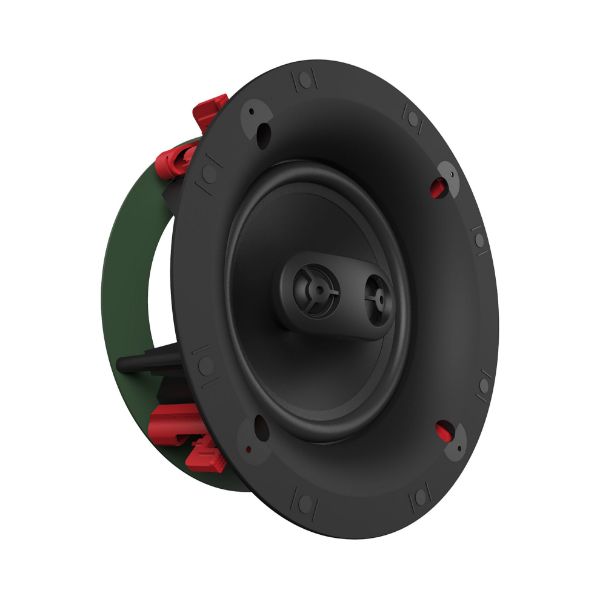

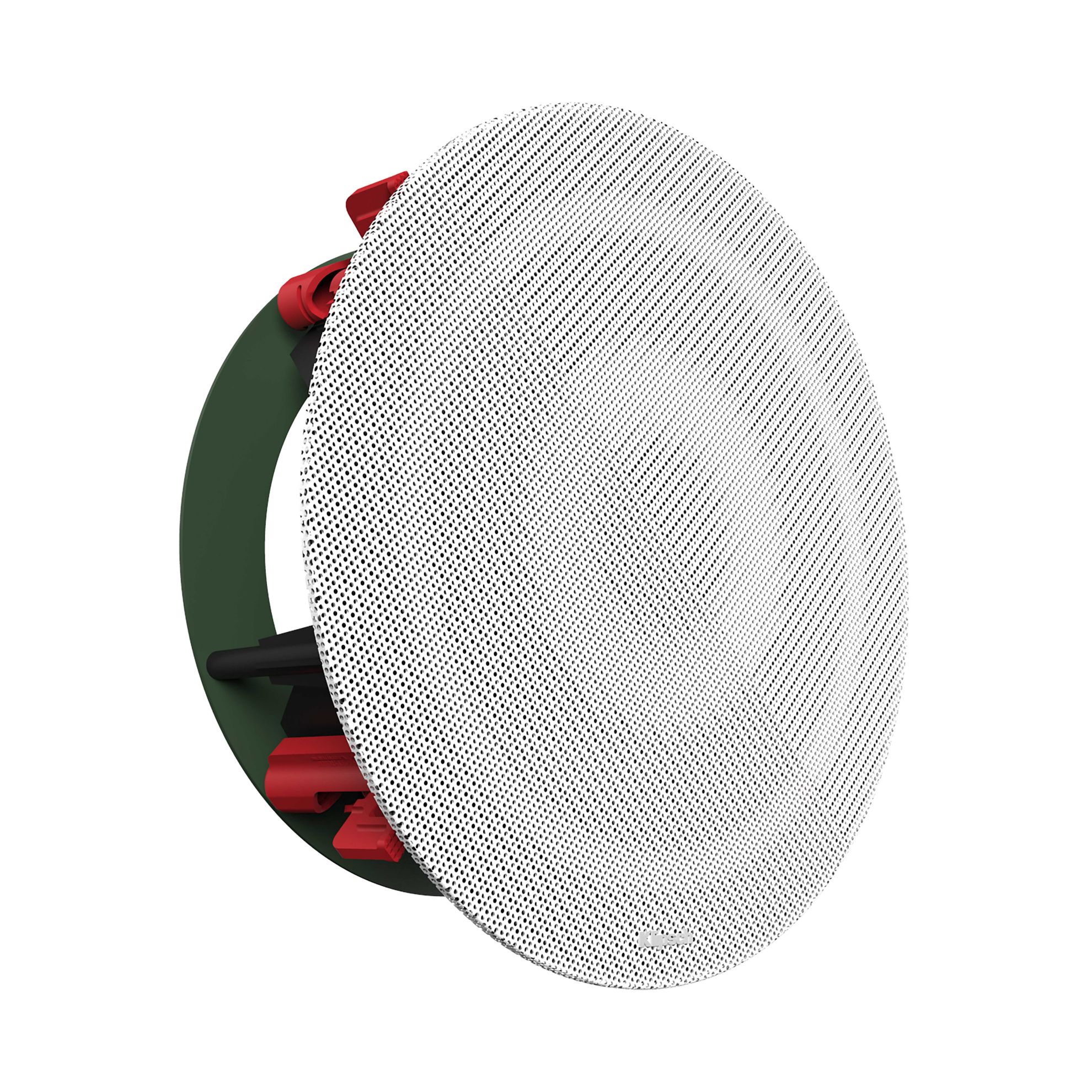

The Klipsch DS-160CSM is a 6.5" stereo in-ceiling speaker from the Designer Series line. Using the same acoustic voicing and design principles of Klipsch's more premium architectural and box speaker lines, the all new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 6.5" Polypropylene woofer and two .75" Silk Dome tweeters, the DS-160CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren't possible.

Key Features

Stereo Sound from a Single Speaker

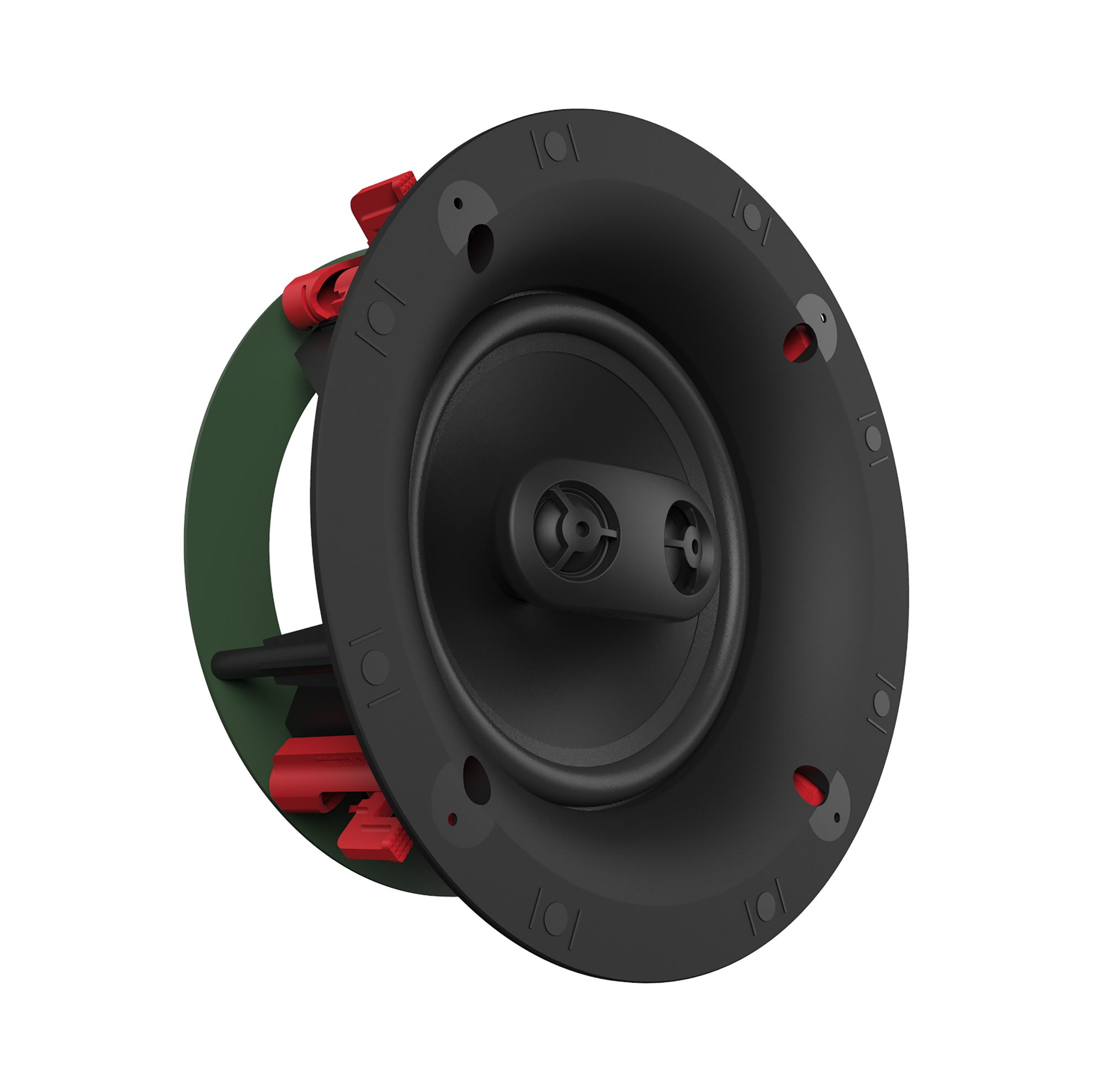

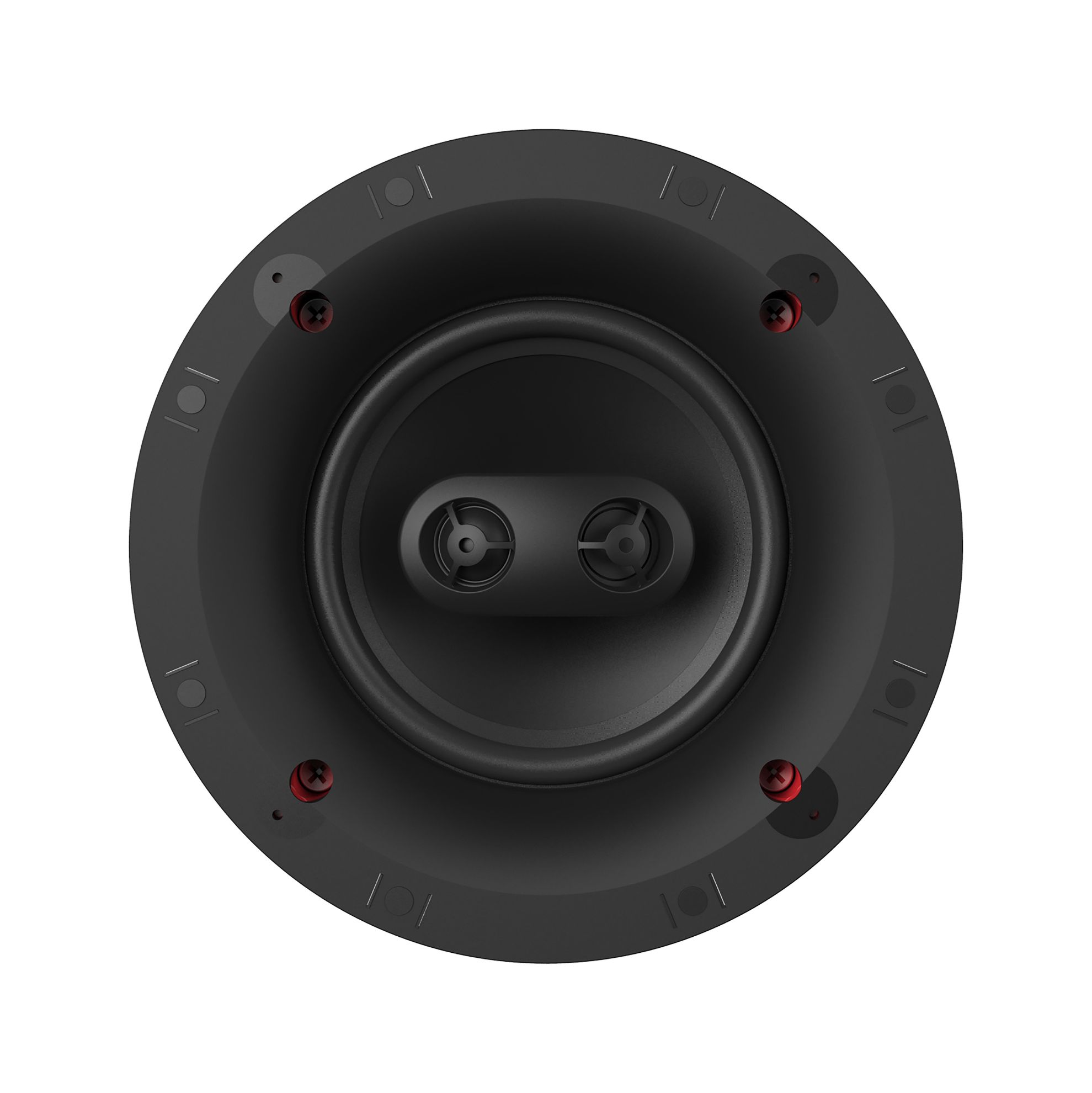

The DS-160CSM features dual .75" (19mm) Silk Dome Tweeters and a 6.5" (165.1mm) Dual Voice Coil Polypropylene Woofer, enabling true stereo sound from a single speaker installation.

Sky Hook® Cinch Installation System
This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole, applying a preset clamping force that eliminates the possibility of overtorquing. When dealing with an uneven space, a 1/4 turn of each dog-leg screw achieves a more even, flush finish. This fast, easy installation system reduces installation time by up to 75%.

Bezel-Free Magnetic Grille

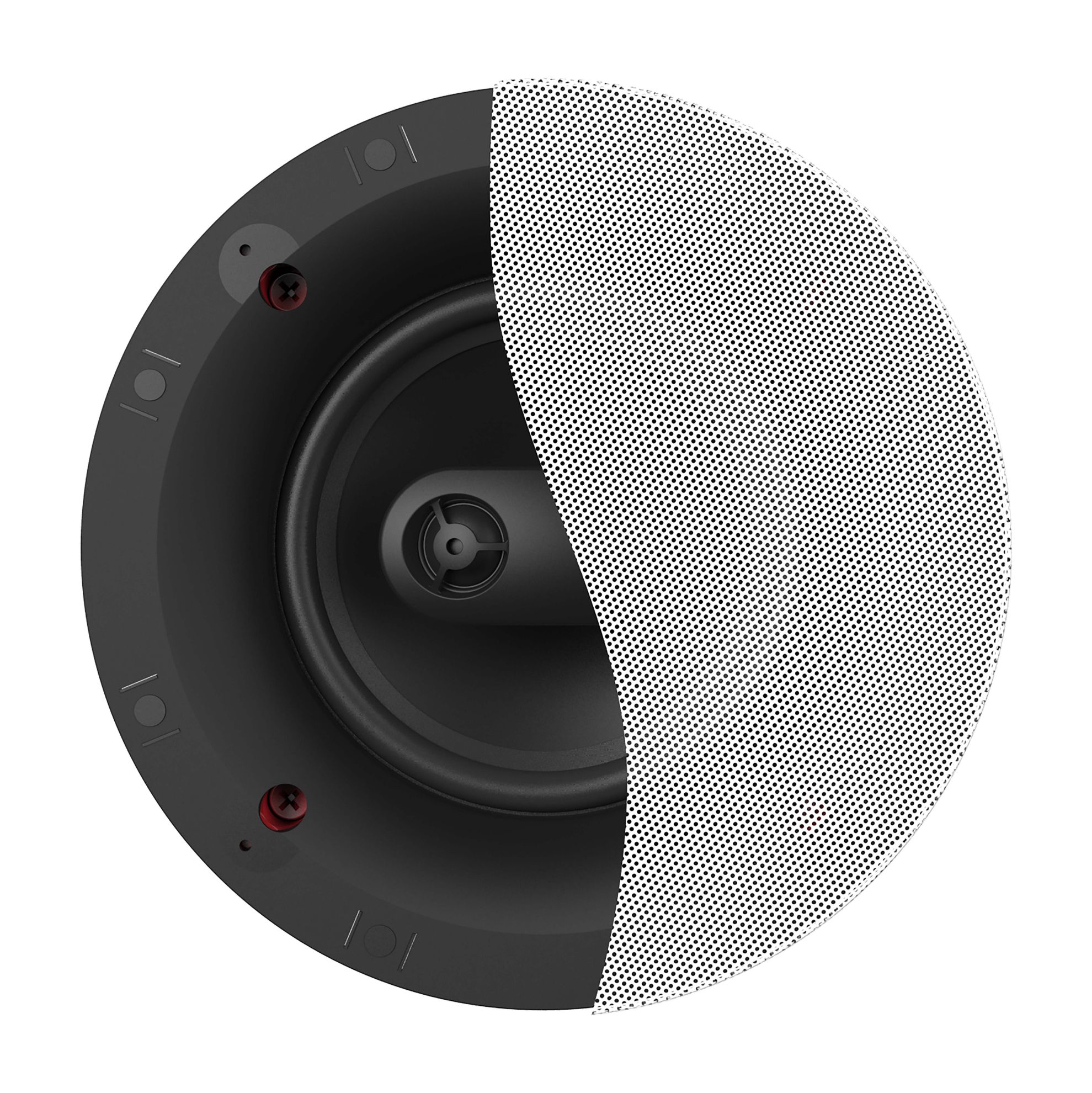

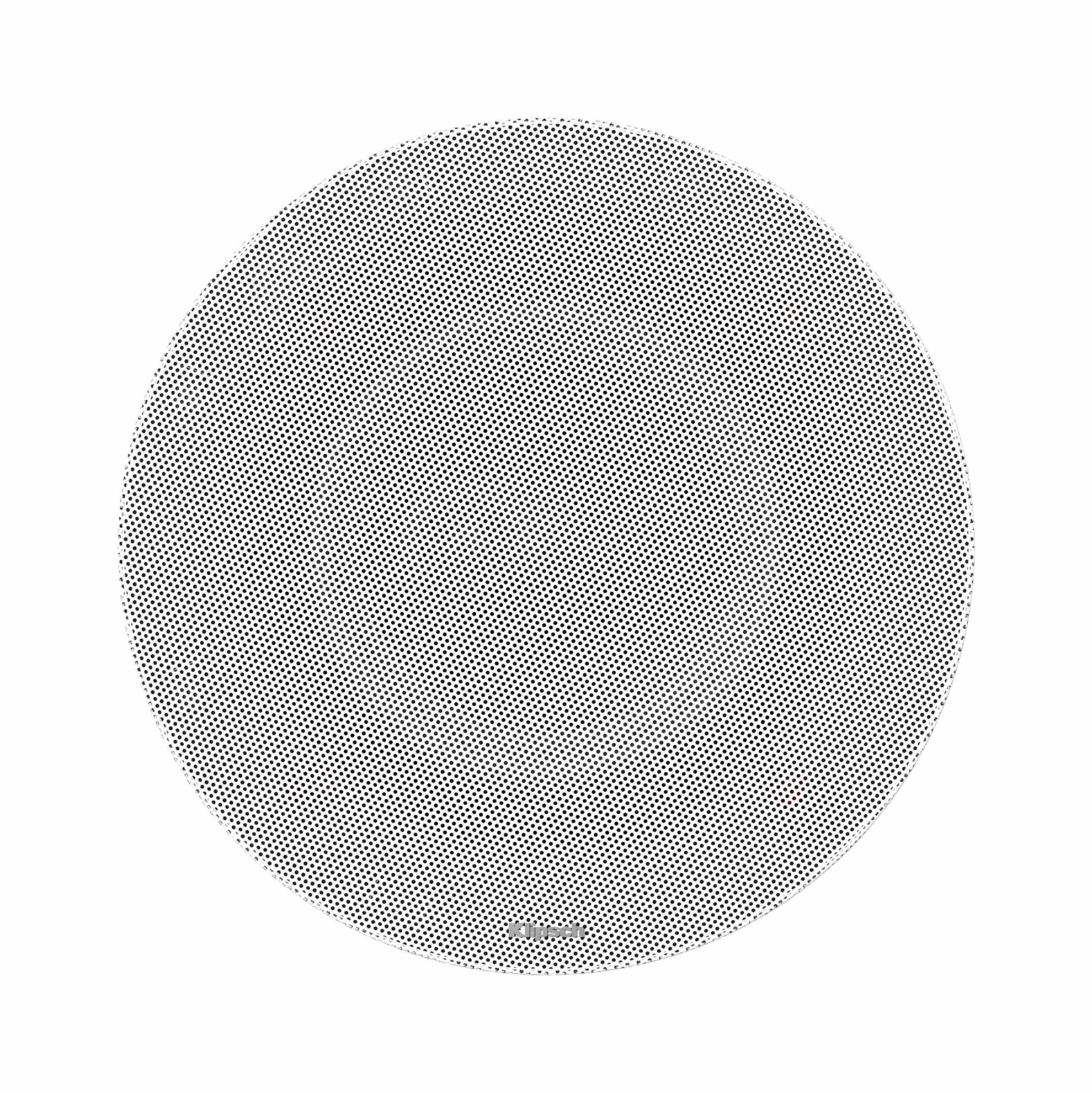

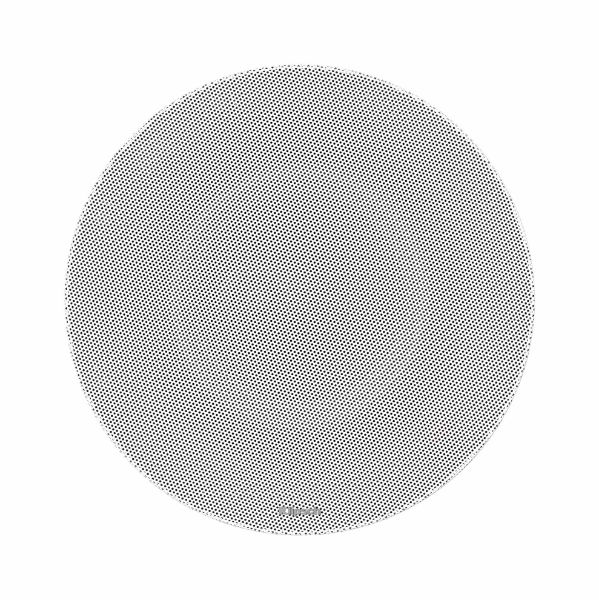

A completely redesigned powder-coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Technical Specifications

• Frequency range: 65Hz-20kHz +/- 3dB
• Sensitivity: 91 dB @ 2.83V / 1m
• Coverage angle: 160°
• Power handling: 50W RMS / 200W RMS
• Impedance: 8 Ohm Compatible
• Enclosure material/type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product dimensions: 9.2" W x 9.2" H x 4.09" D (233mm H x 233mm W x 104mm D)
• Mounting depth: 3.98" (101mm)
• Cutout dimensions: 7.99" (203mm)
• Product weight: 7 lbs (3.18kg)
• Included in box: Flat Paintable Magnetic Grille
