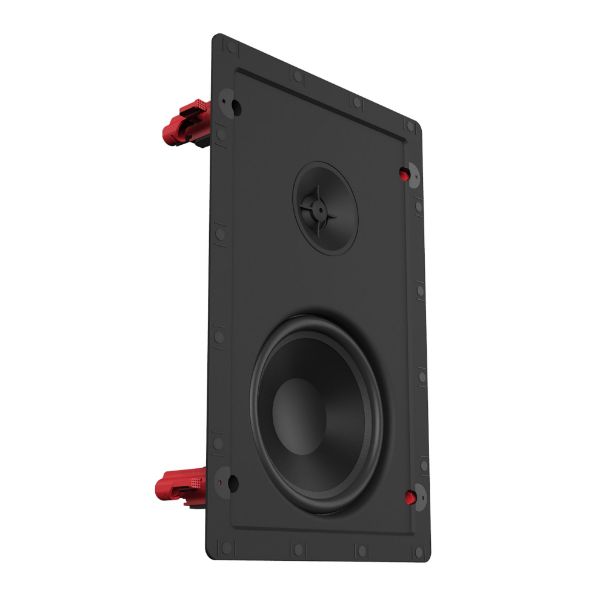

The Klipsch DS-160W is a 6.5" in-wall speaker from the Designer Series line. Using the same Tractrix® horn technology and design principles of Klipsch's more premium architectural and box speaker lines, the all-new Klipsch Designer series brings true Klipsch power and performance.

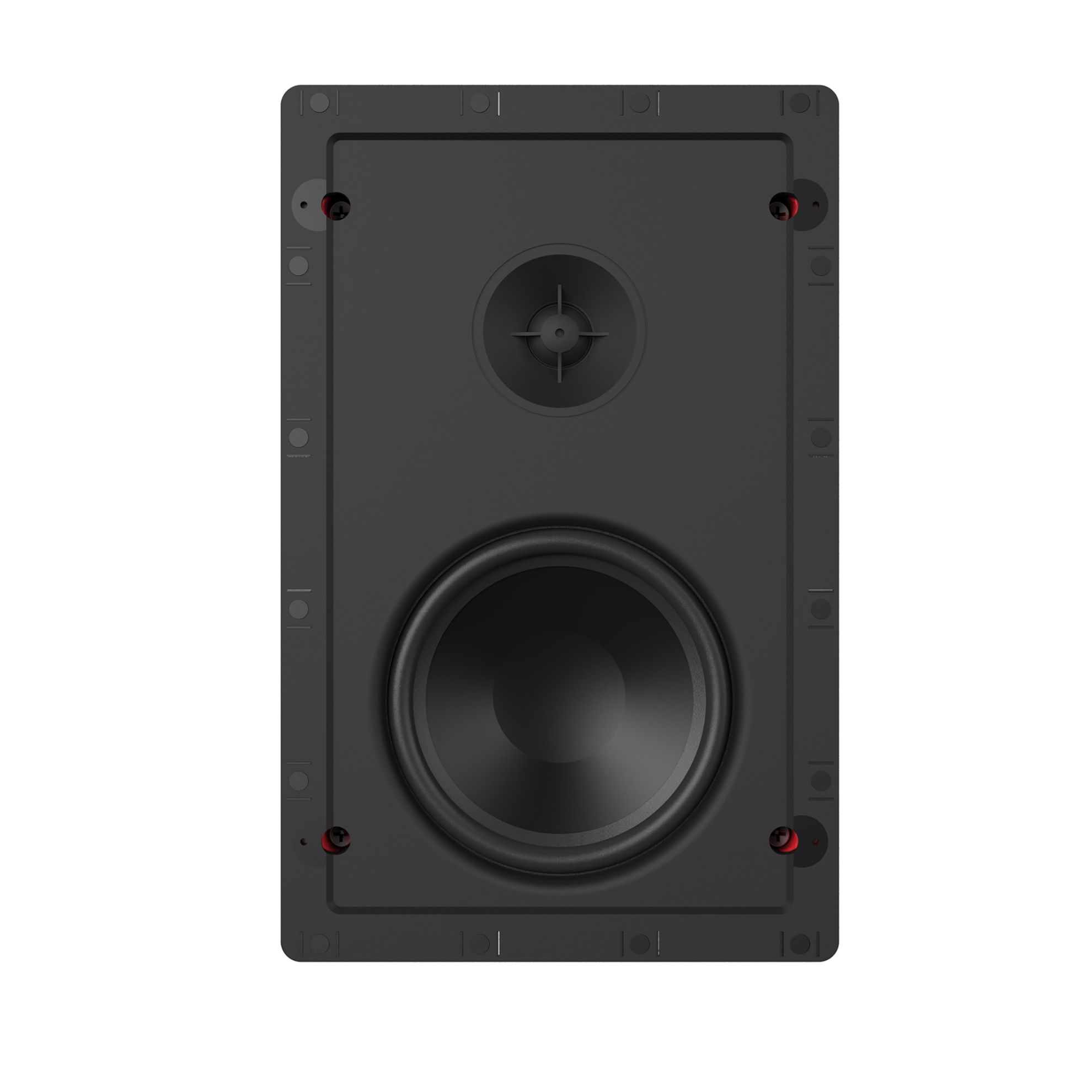

With a 6.5" Polypropylene woofer and a 1" Silk Dome tweeter mated to a round Tractrix® horn, the DS-160W brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theater, or 2-channel system.

Key Features

• Horn-Loaded Performance
  The DS-160W features a 1" (2.54cm) Silk Dome Tweeter mated to a round Tractrix® Horn and a 6.5" (16.51cm) Polypropylene Woofer, delivering horn-loaded performance with a 100° coverage angle.

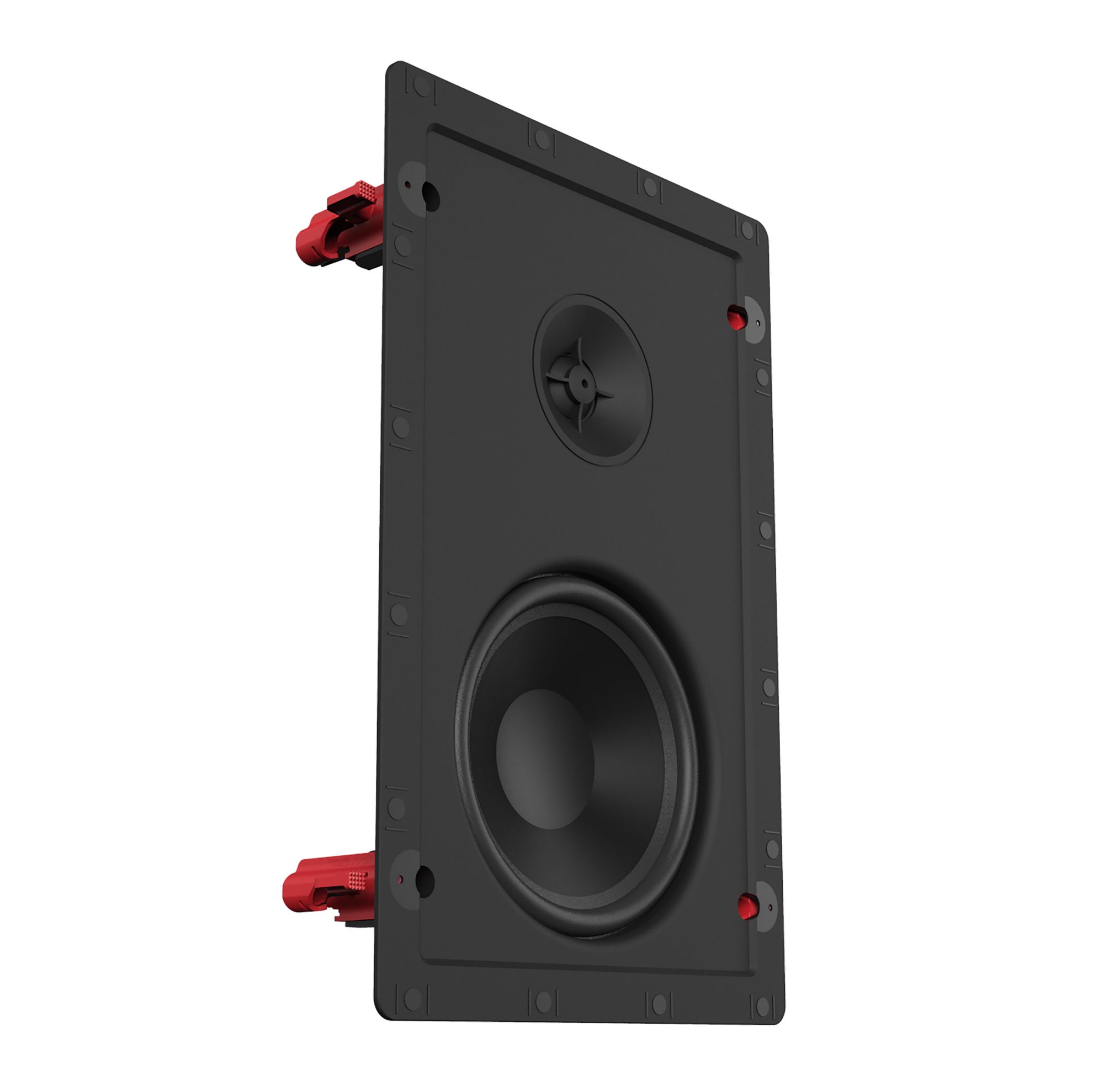

• Sky Hook® Cinch Installation System
  This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole, applying a preset clamping force that eliminates the possibility of overtorquing. When dealing with an uneven space, a 1/4 turn of each dog-leg screw achieves a more even, flush finish. This fast, easy installation system reduces installation time by up to 75%.

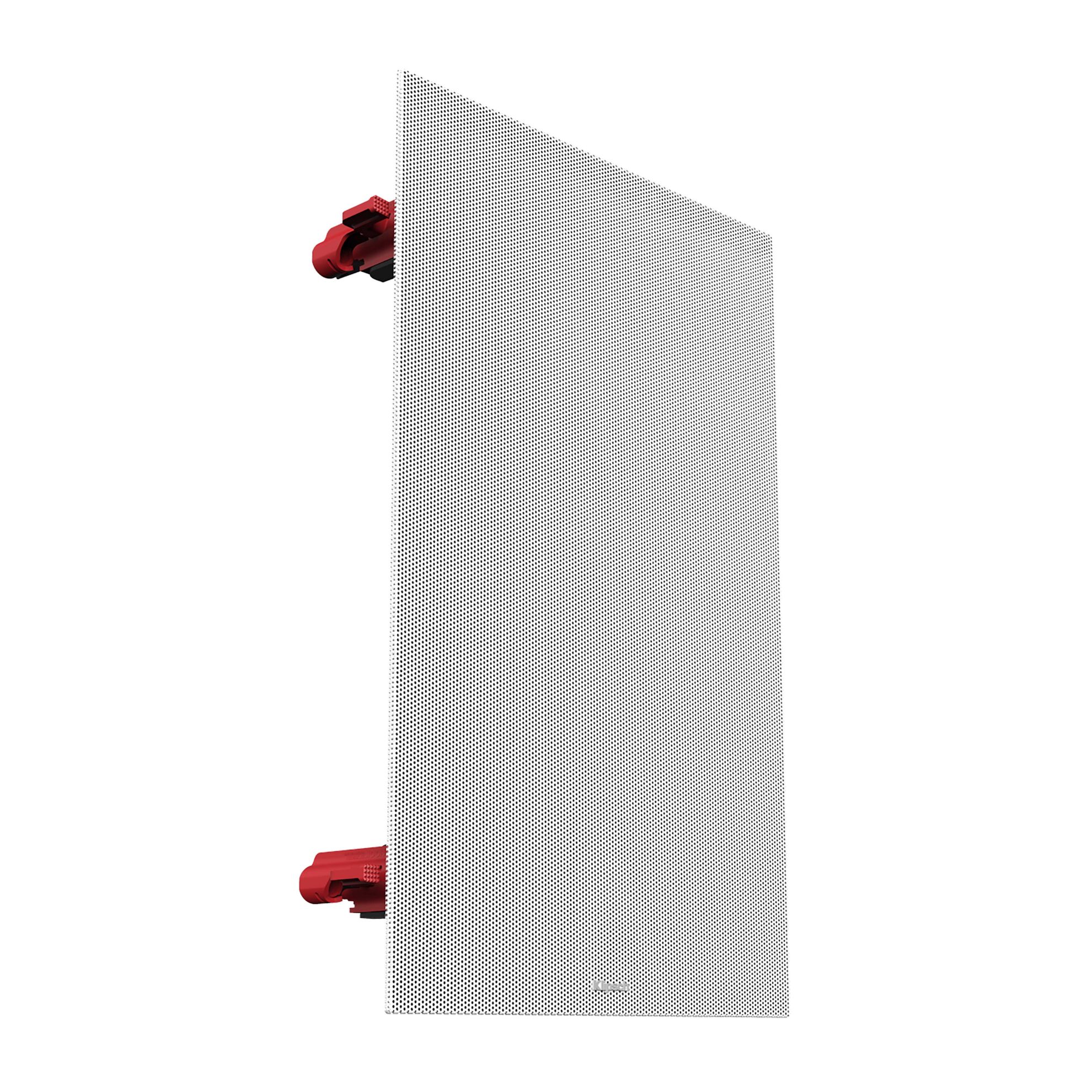

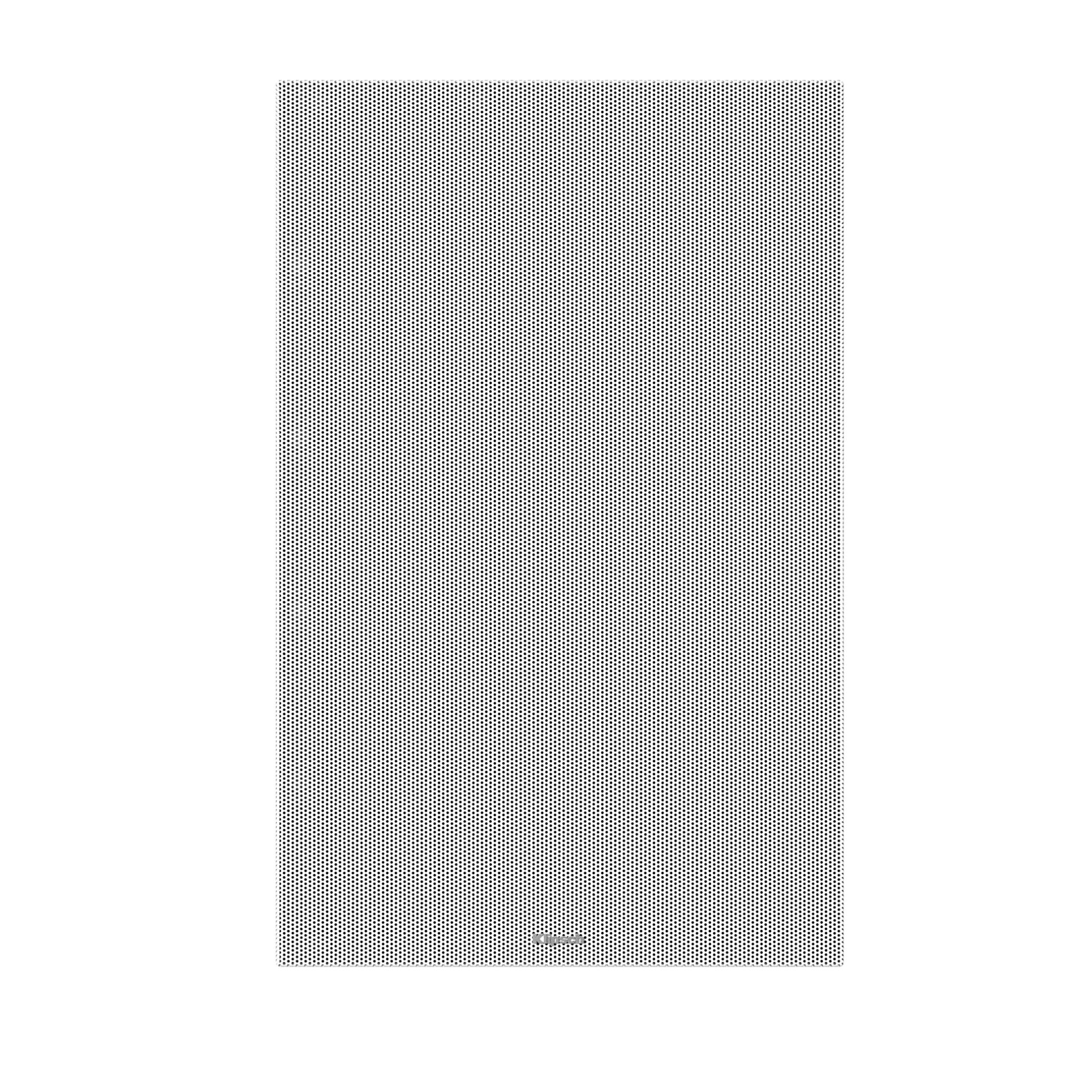

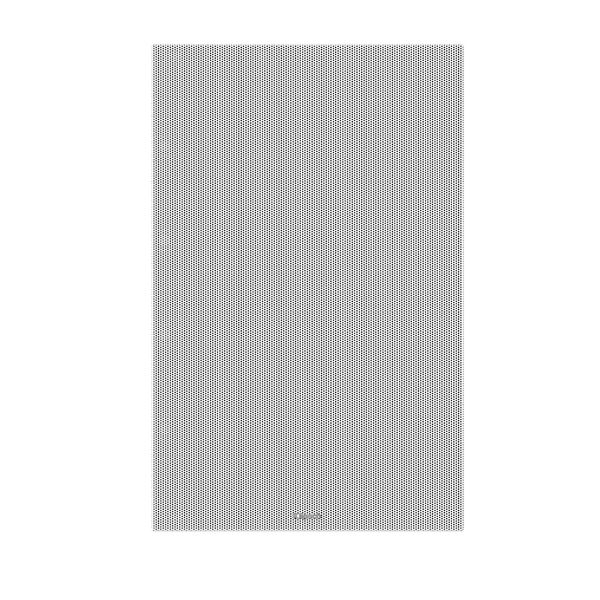

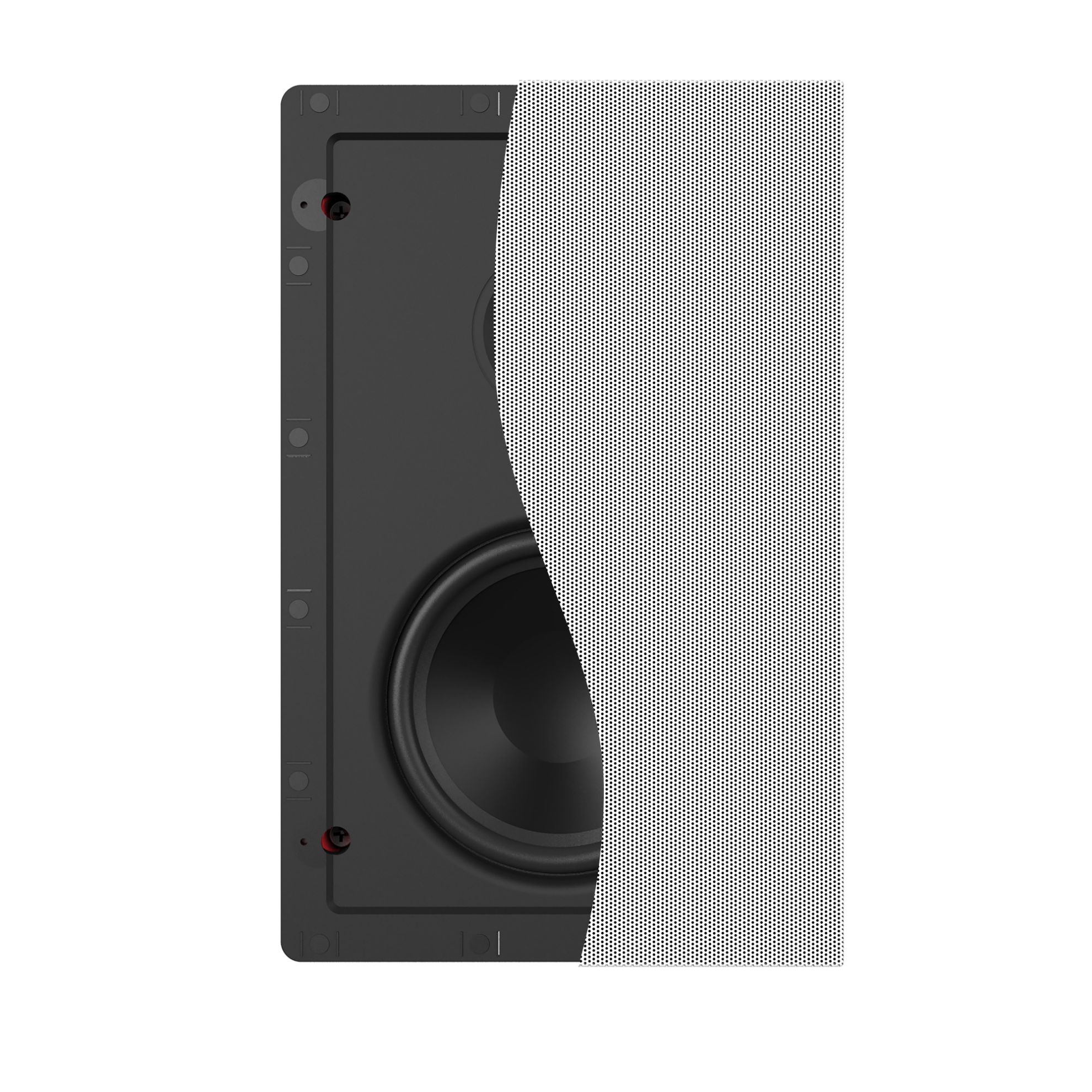

• Bezel-Free Magnetic Grille
  A completely redesigned powder-coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Technical Specifications

• Frequency range: 65Hz-20kHz +/- 3dB
• Sensitivity: 91 dB @ 2.83V / 1m
• Coverage angle: 100°
• Power handling: 50W RMS / 200W RMS
• Impedance: 8 Ohm Compatible
• Enclosure material/type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product dimensions: 9.0" W x 14.1" H x 3.43" D (22.8cm H x 35.8cm W x 8.7cm D)
• Mounting depth: 3.31" (8.4cm)
• Cutout dimensions: 13" H x 8" W (33.0cm H x 20.3cm W)
• Product weight: 7.2lbs (3.25kg)
• Included in box: Magnetic Grille
