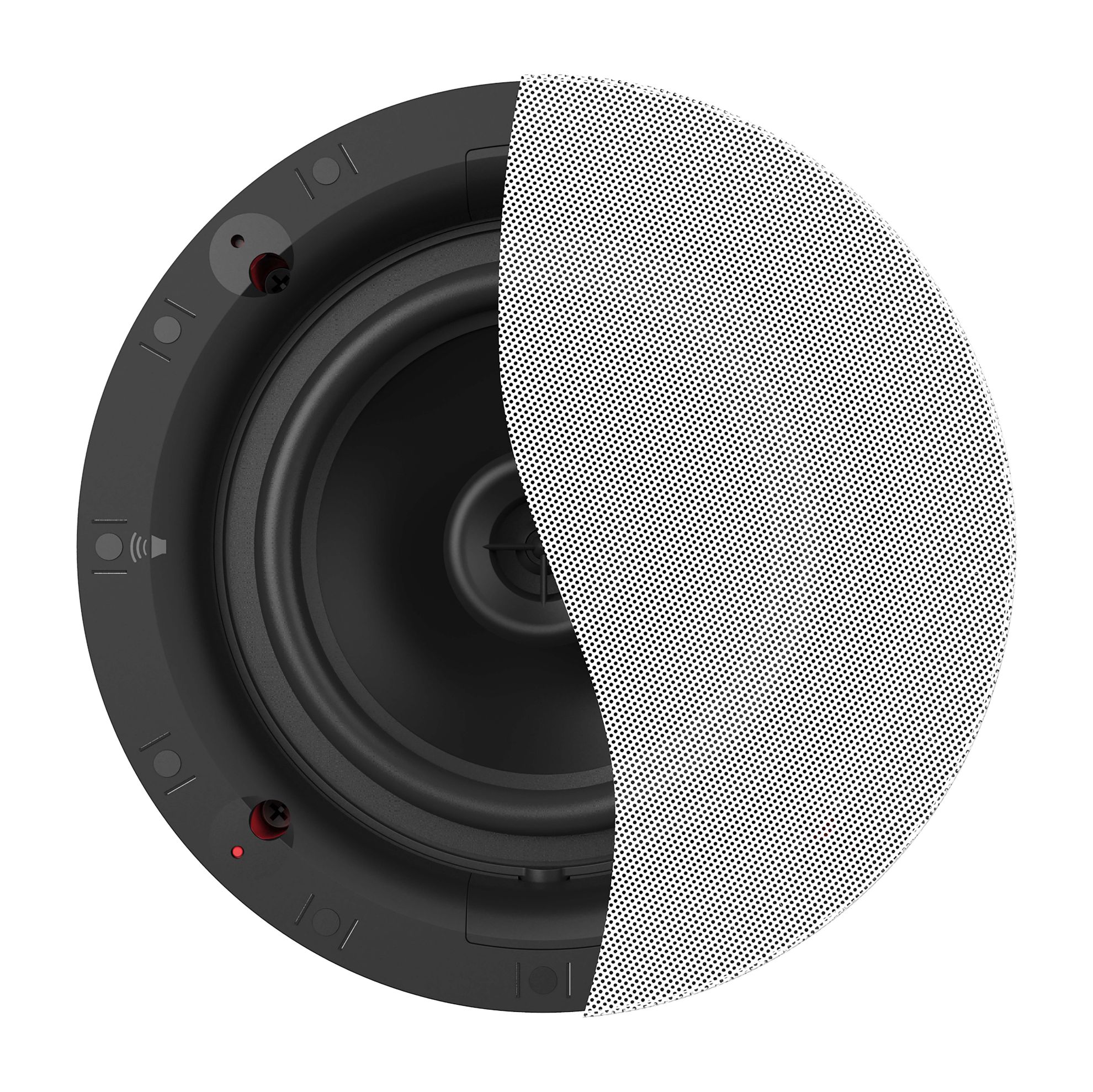

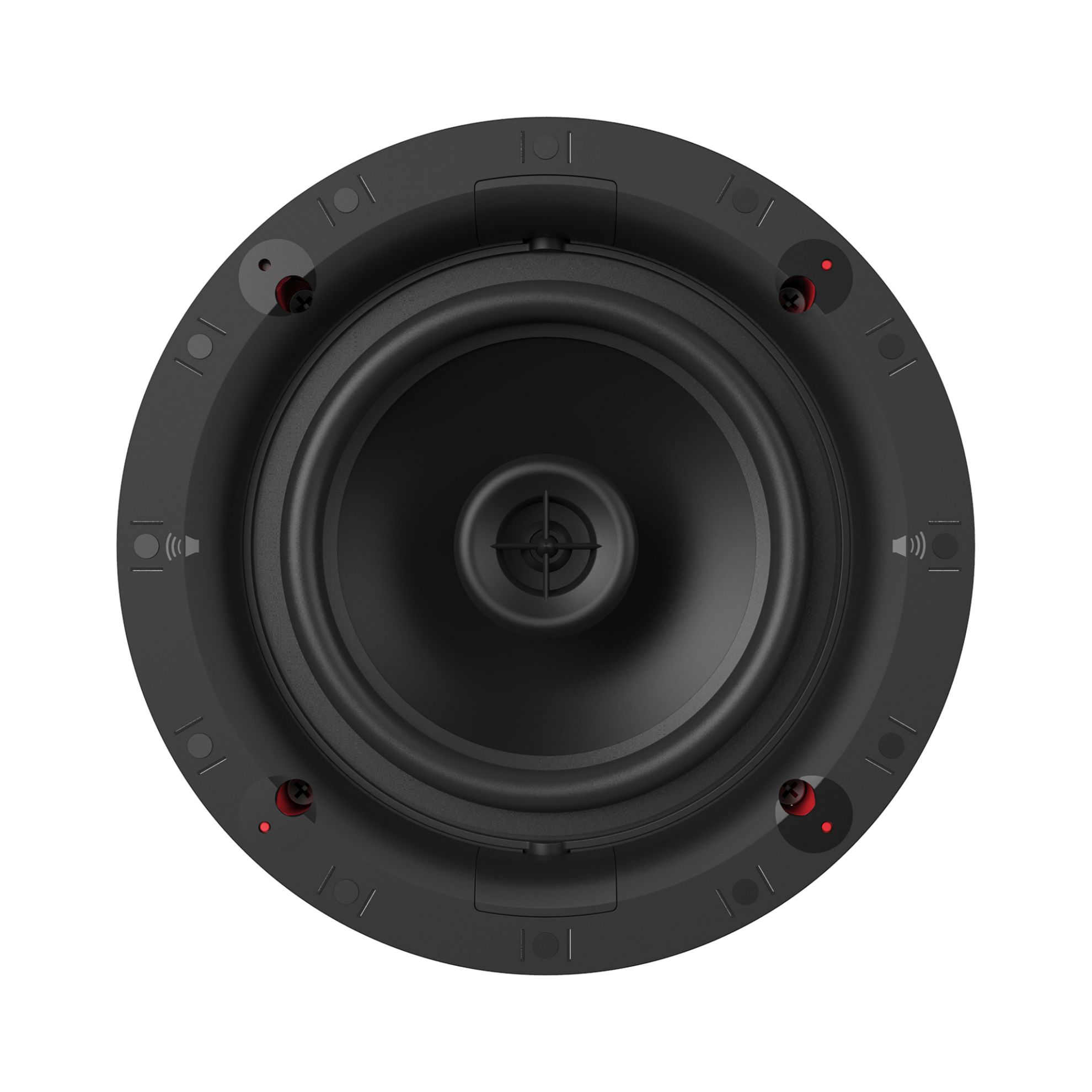

The Klipsch DS-180CDT is an 8" in-ceiling speaker from the Designer Series line. Using the same Tractrix® horn technology and design principles of Klipsch's premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With an 8" Polypropylene woofer and a 1" Silk Dome tweeter mated to a round Tractrix® horn, the DS-180CDT brings dynamic, powerful, detailed Klipsch sound to your distributed audio, home theater, or 2-channel system.

Key Features

• Horn-Loaded Performance
  The DS-180CDT features a 1" (25.4mm) Silk Dome Tweeter mated to a round Tractrix® Horn and an 8" (203.2mm) Polypropylene Woofer, delivering horn-loaded performance with a 100° coverage angle.
• Controlled Dispersion Technology™
  CDT technology allows for the tweeter and the woofer to be aimed up to 15°, helping to ensure on-axis frequency response at almost any listening position.

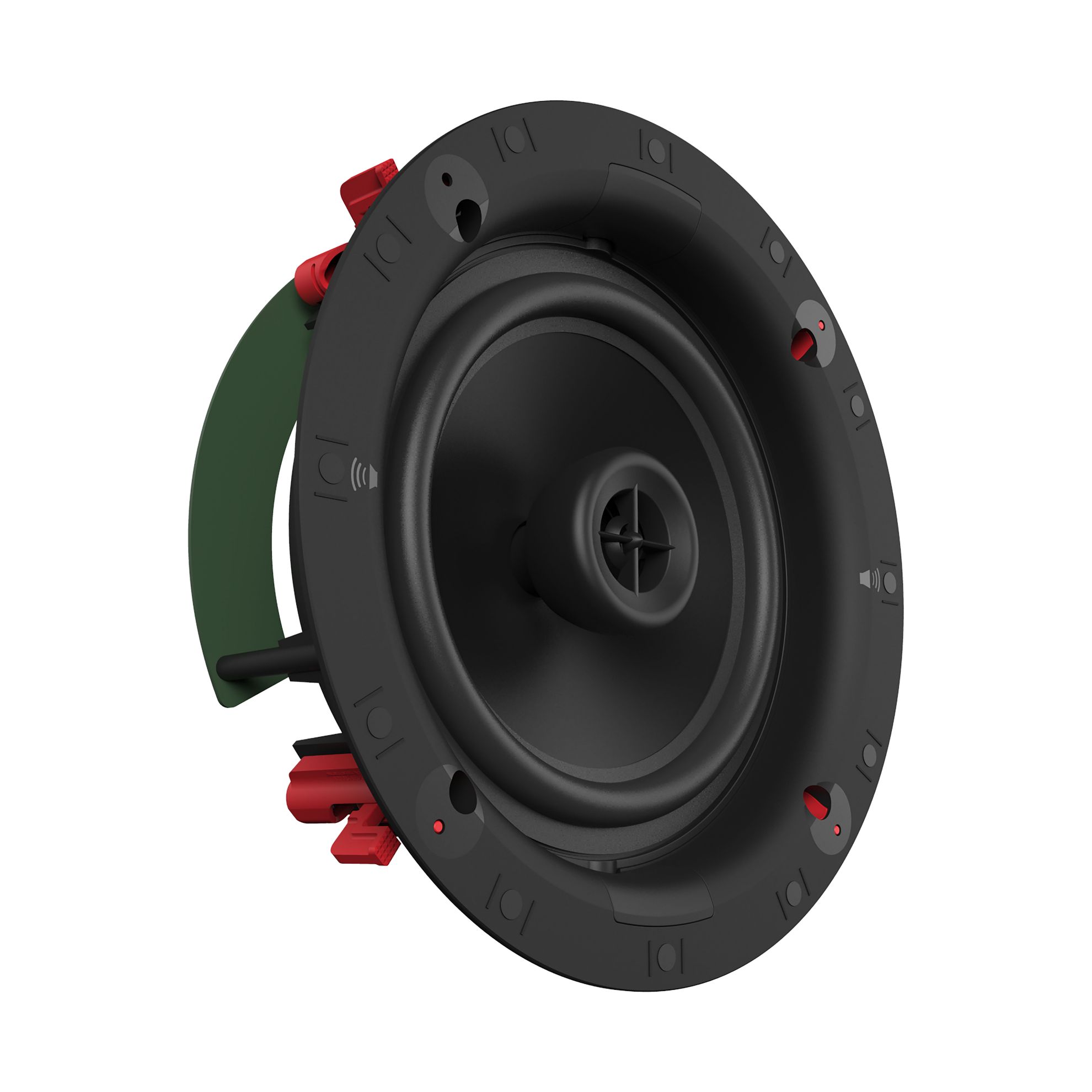

• Sky Hook® Cinch Installation System
  This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole, applying a preset clamping force that eliminates the possibility of overtorquing. When dealing with an uneven space, a 1/4 turn of each dog-leg screw achieves a more even, flush finish. This fast, easy installation system reduces installation time by up to 75%.

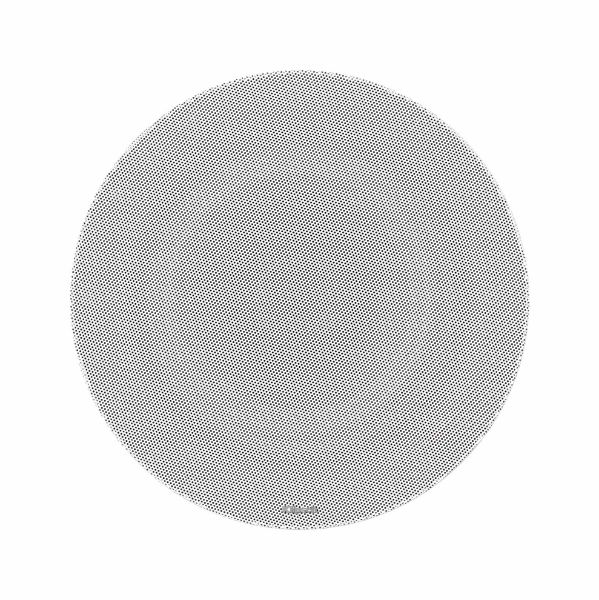

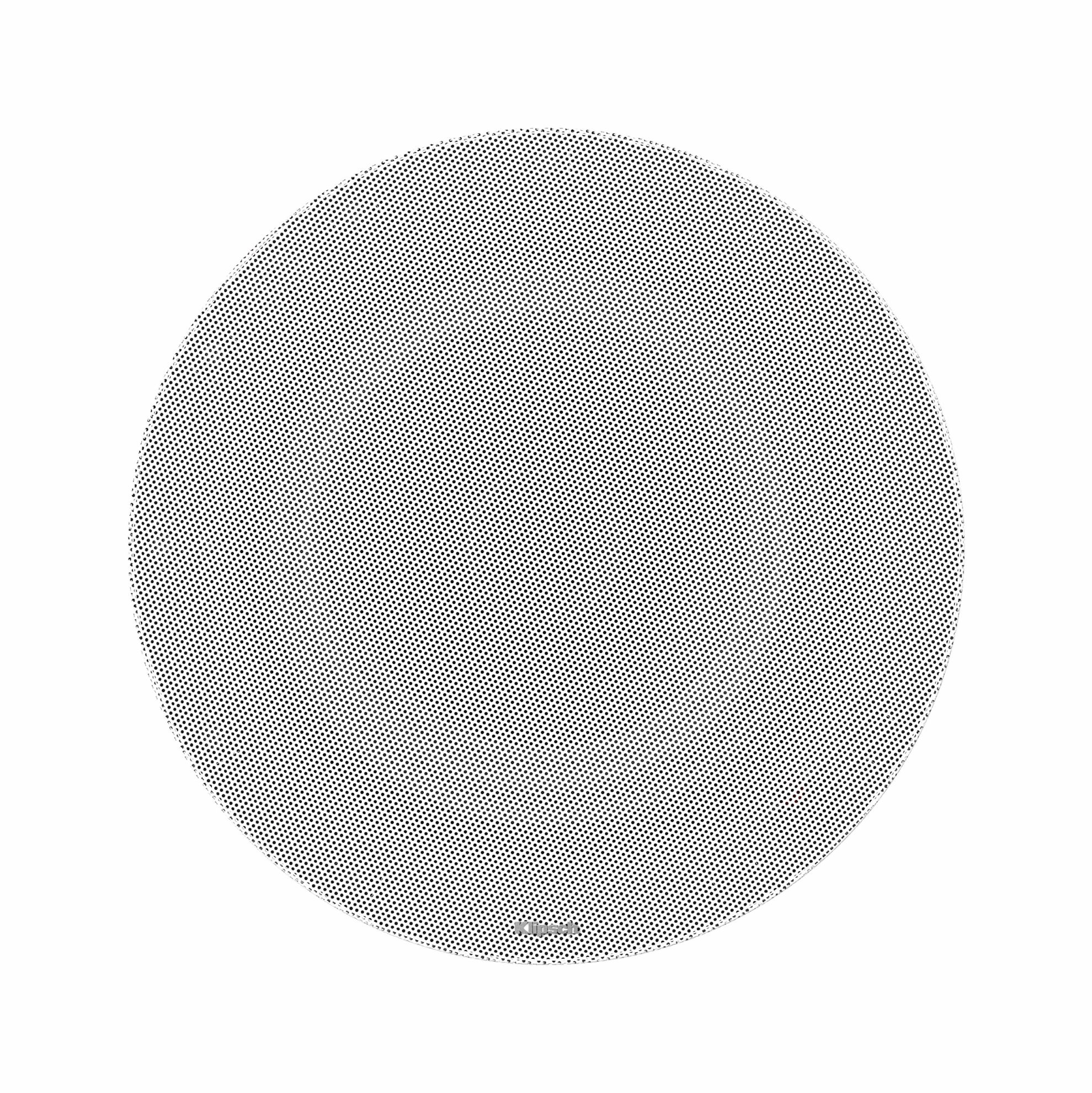

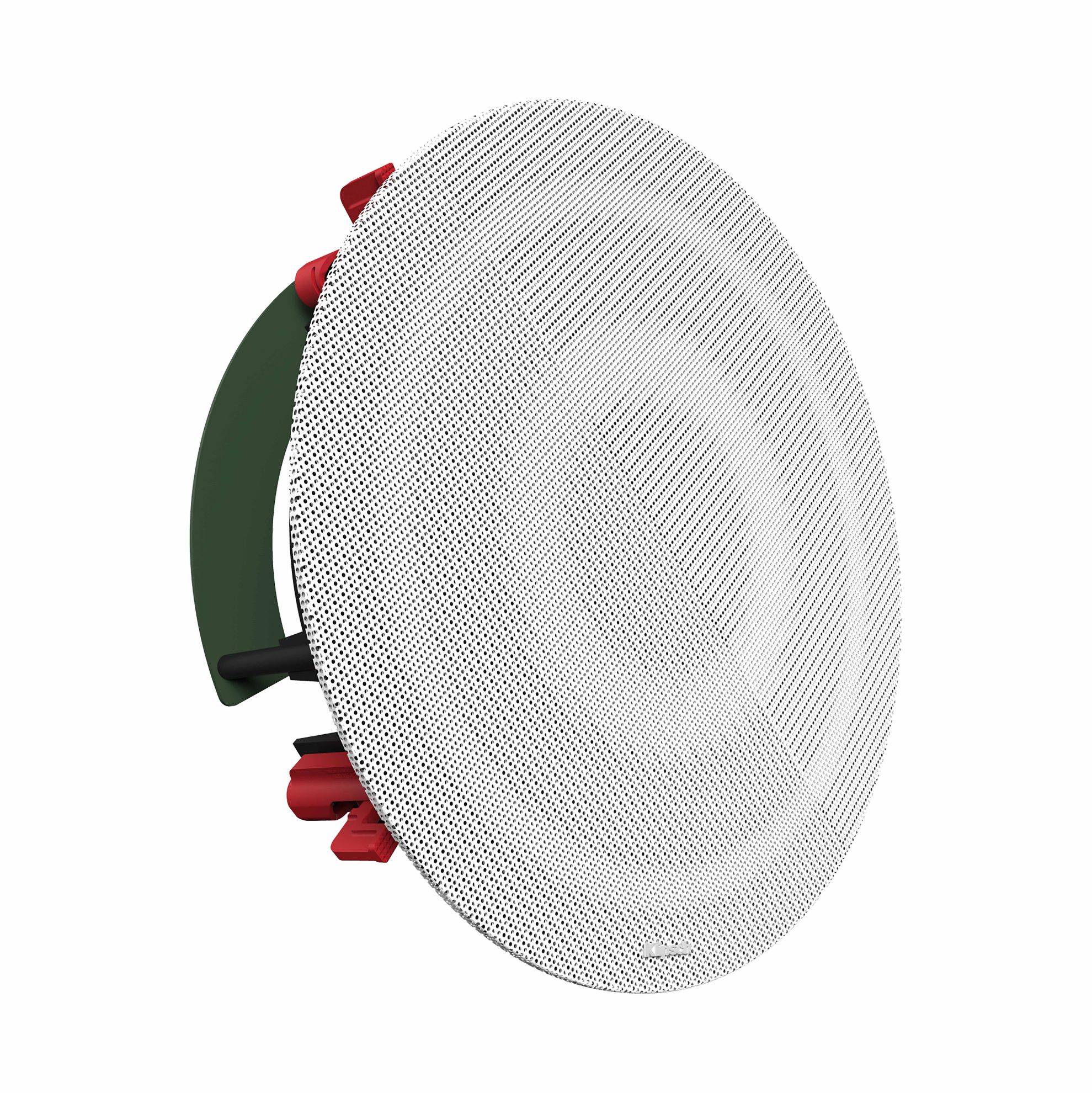

• Bezel-Free Magnetic Grille
  A completely redesigned powder-coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Technical Specifications

• Frequency range: 55Hz-20kHz +/- 3dB
• Sensitivity: 94 dB @ 2.83V / 1m
• Coverage angle: 100°
• Power handling: 50W RMS / 200W RMS
• Impedance: 8 Ohm Compatible
• Enclosure material/type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product dimensions: 10.75" W x 10.75" H x 4.76" D (273mm H x 273mm W x 121mm D)
• Mounting depth: 4.65" (118mm)
• Cutout dimensions: 9.57" (243mm)
• Product weight: 7.4 lbs (3.36kg)
• Included in box: Flat Paintable Magnetic Grille
