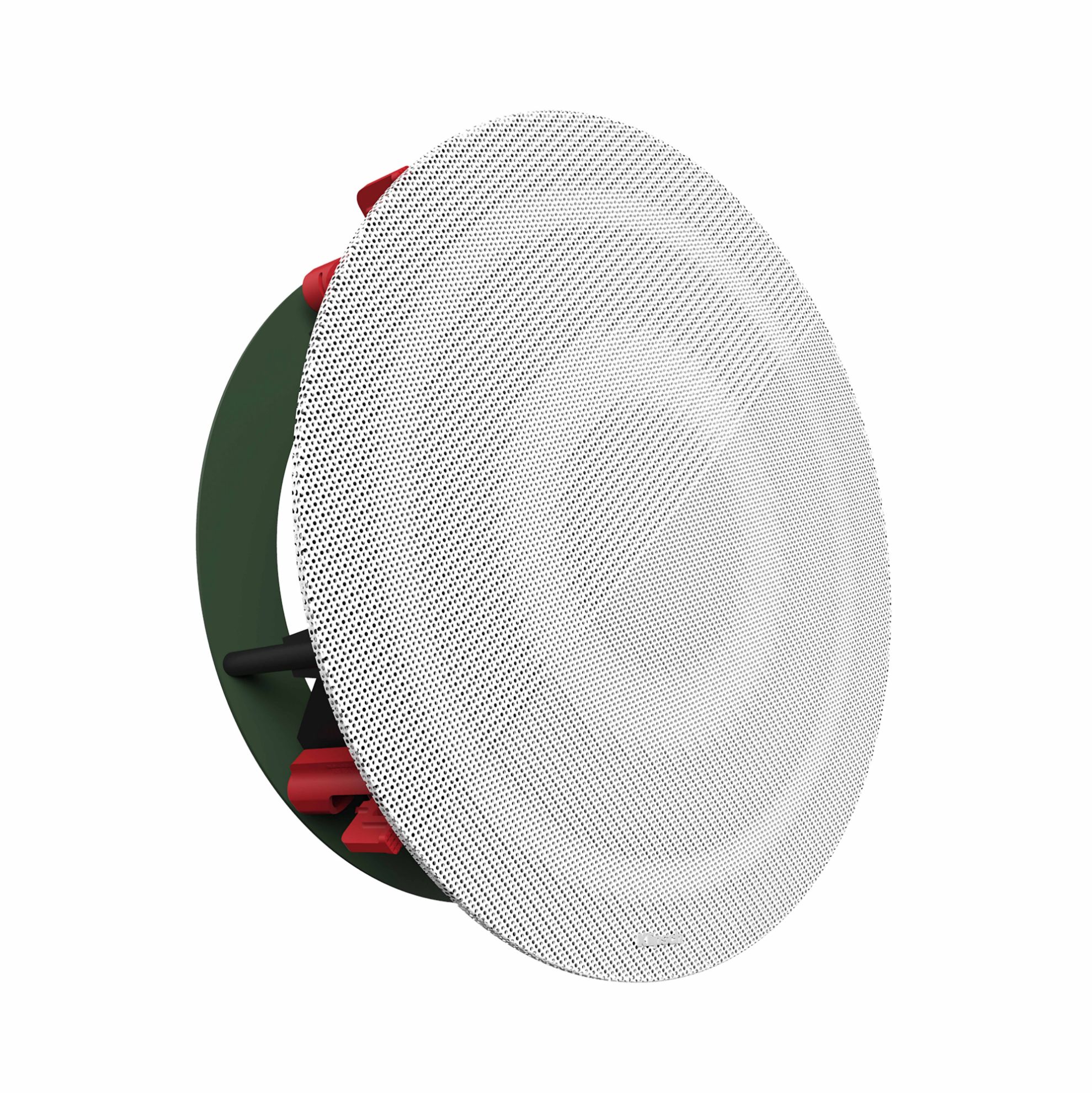

The Klipsch DS-180CSM is an 8" stereo in-ceiling speaker from the Designer Series line. Using the same acoustic voicing and design principles of Klipsch's more premium architectural and box speaker lines, the all-new Klipsch Designer series provides true Klipsch power and performance. With a dual voice coil 8" Polypropylene woofer and two.75" Silk Dome tweeters, the DS-180CSM brings dynamic, powerful, detailed sound to your distributed audio system - for true stereo sound in spaces where two speakers aren't possible.

Key Features

• Stereo Sound from a Single Speaker

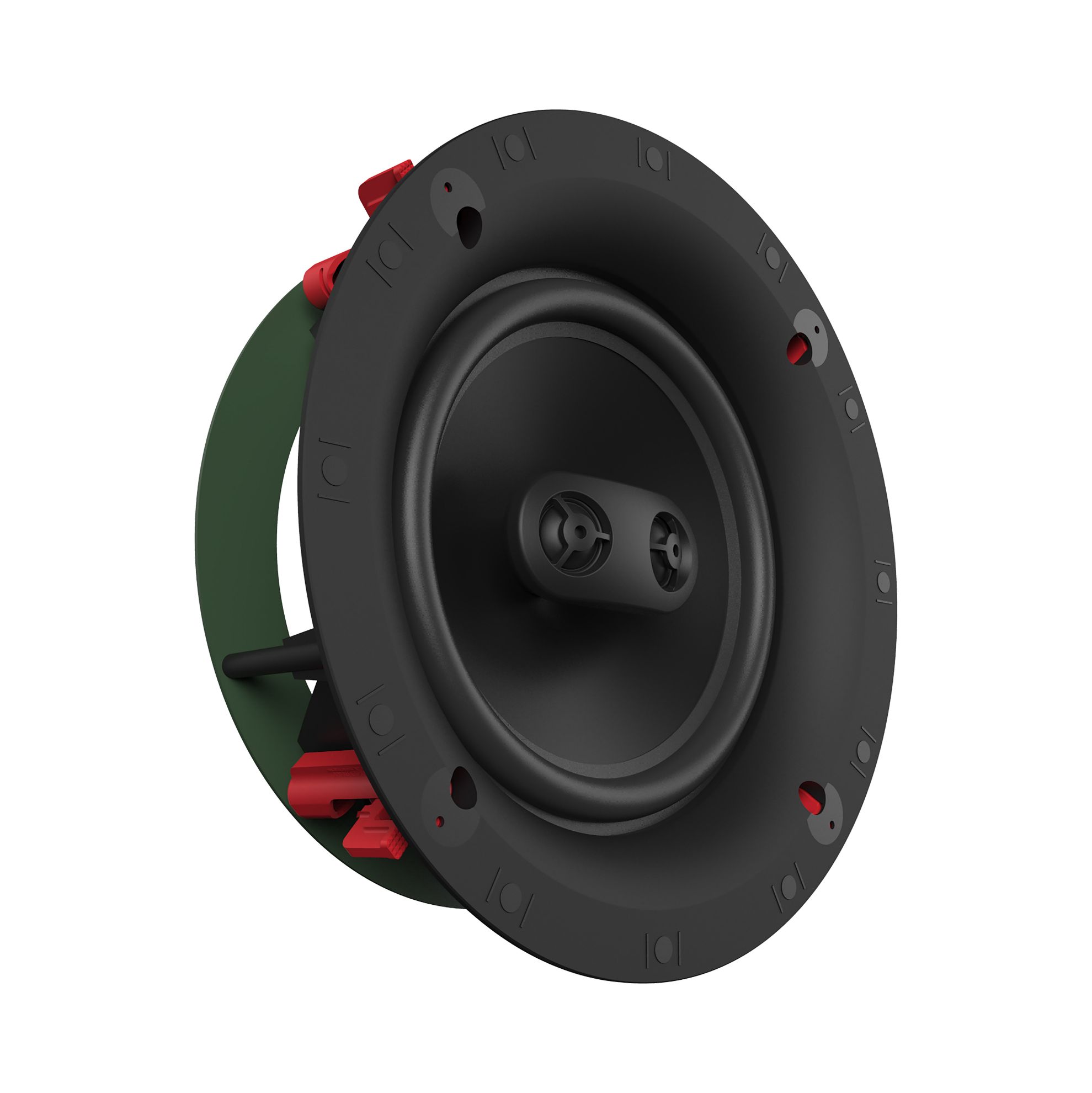

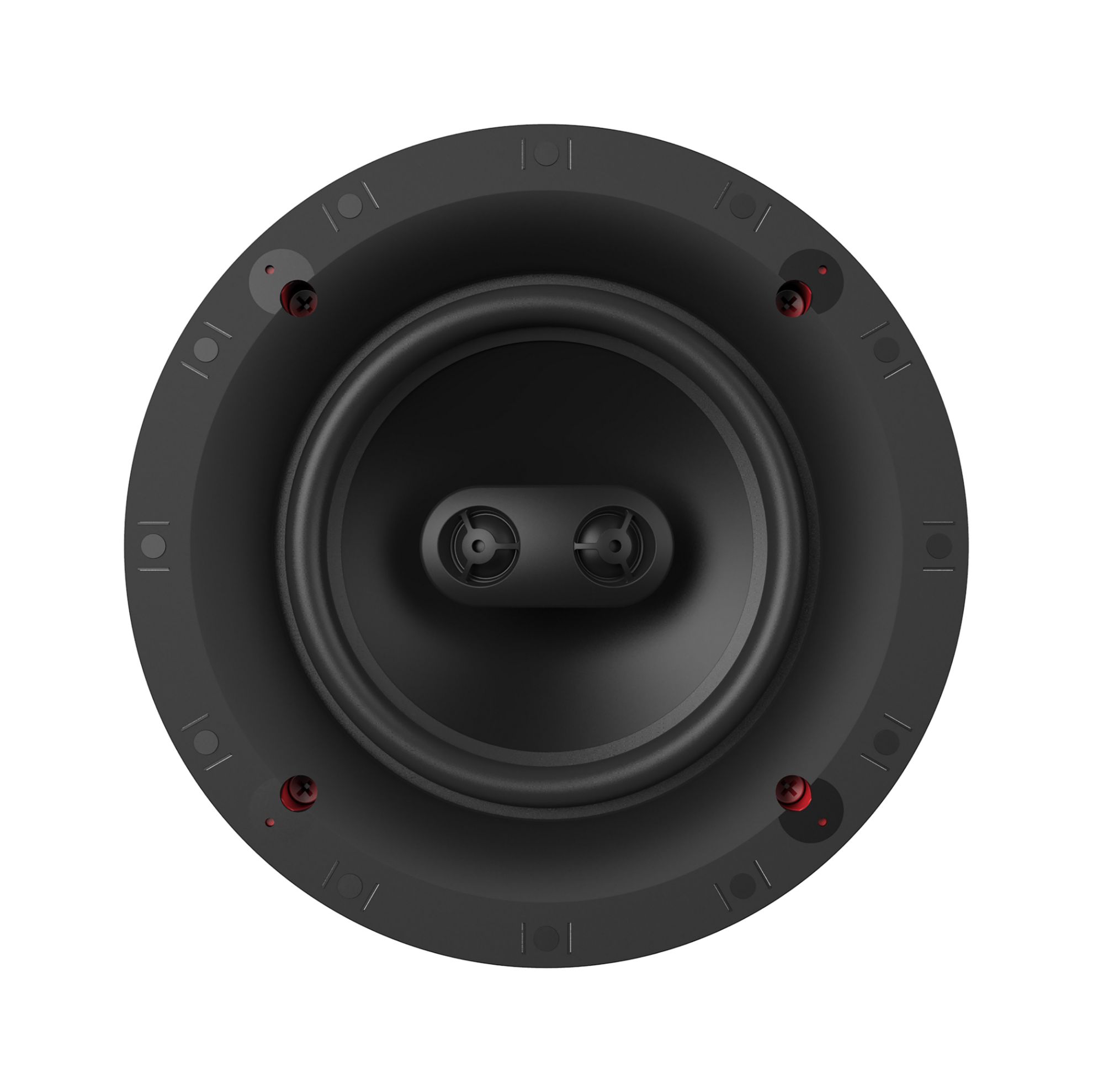

  The DS-180CSM features dual .75" (19mm) Silk Dome Tweeters and an 8" (203.2mm) Polypropylene Woofer, enabling true stereo sound from a single speaker installation with a 160° coverage angle.
• Sky Hook® Cinch Installation System
  This exclusive installation system engages the dog legs automatically when the speaker is inserted into the cutout hole, applying a preset clamping force that eliminates the possibility of overtorquing. When dealing with an uneven space, a 1/4 turn of each dog-leg screw achieves a more even, flush finish. This fast, easy installation system reduces installation time by up to 75%.
• Bezel-Free Magnetic Grille

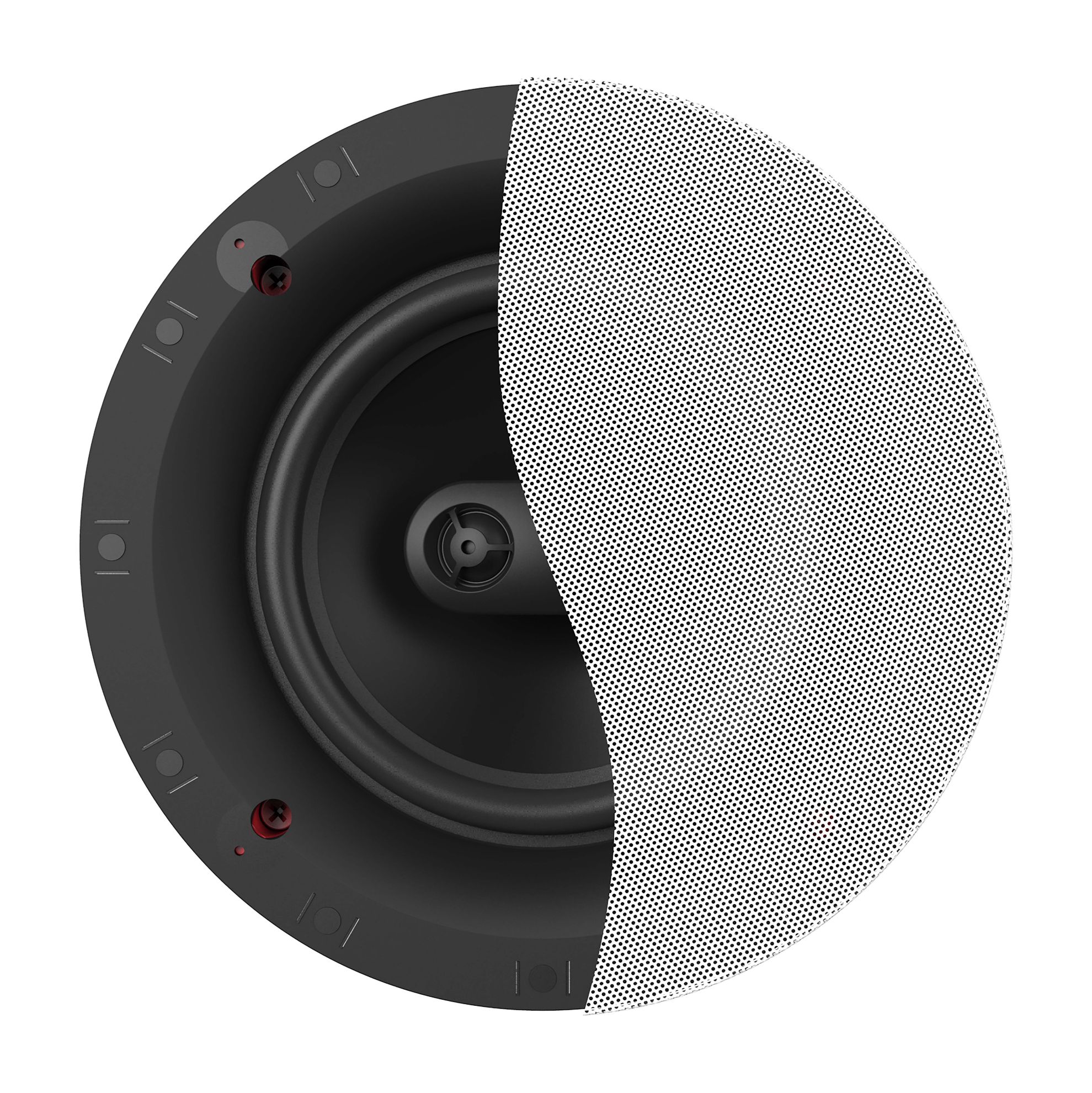

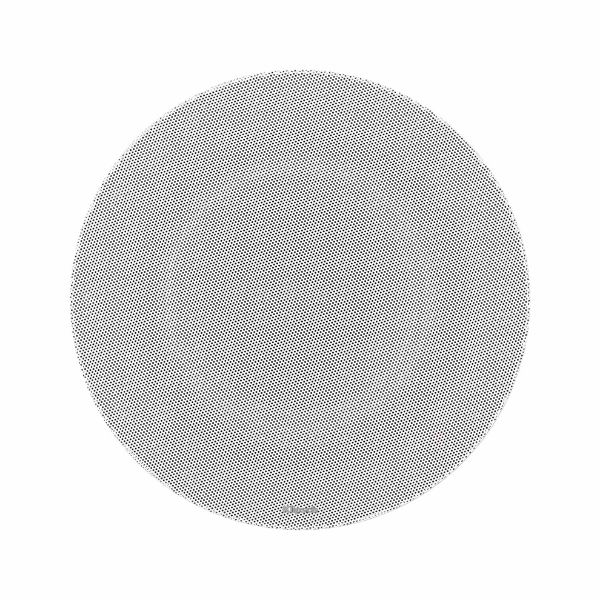

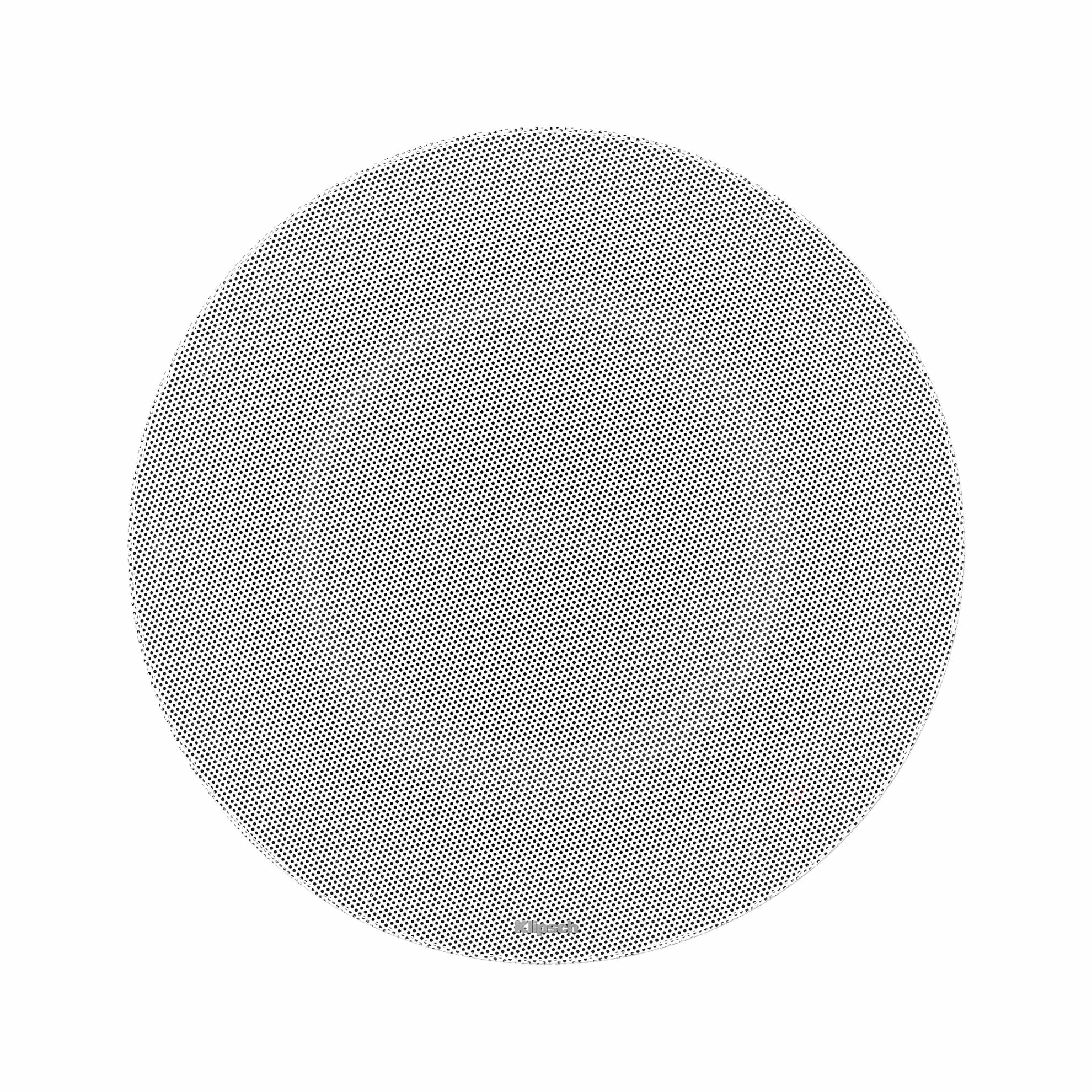

  A completely redesigned powder-coated magnetic steel grille eliminates the bezel for seamless, pristine integration into the living space.

Technical Specifications

• Frequency range: 55Hz-20kHz +/- 3dB
• Sensitivity: 94 dB @ 2.83V / 1m
• Coverage angle: 160°
• Power handling: 50W RMS / 200W RMS
• Impedance: 8 ohms compatible
• Enclosure material/type: ABS/Infinite Baffle
• Finish: Black Baffle/Frame, White Paintable Grille
• Product dimensions: 10.75" W x 10.75" H x 4.37" D (273mm H x 273mm W x 111mm D)
• Mounting depth: 4.25" (108mm)
• Cutout dimensions: 9.57" (243mm)
• Product weight: 7.4 lbs (3.36kg)
• Included in box: Flat Paintable Magnetic Grille
