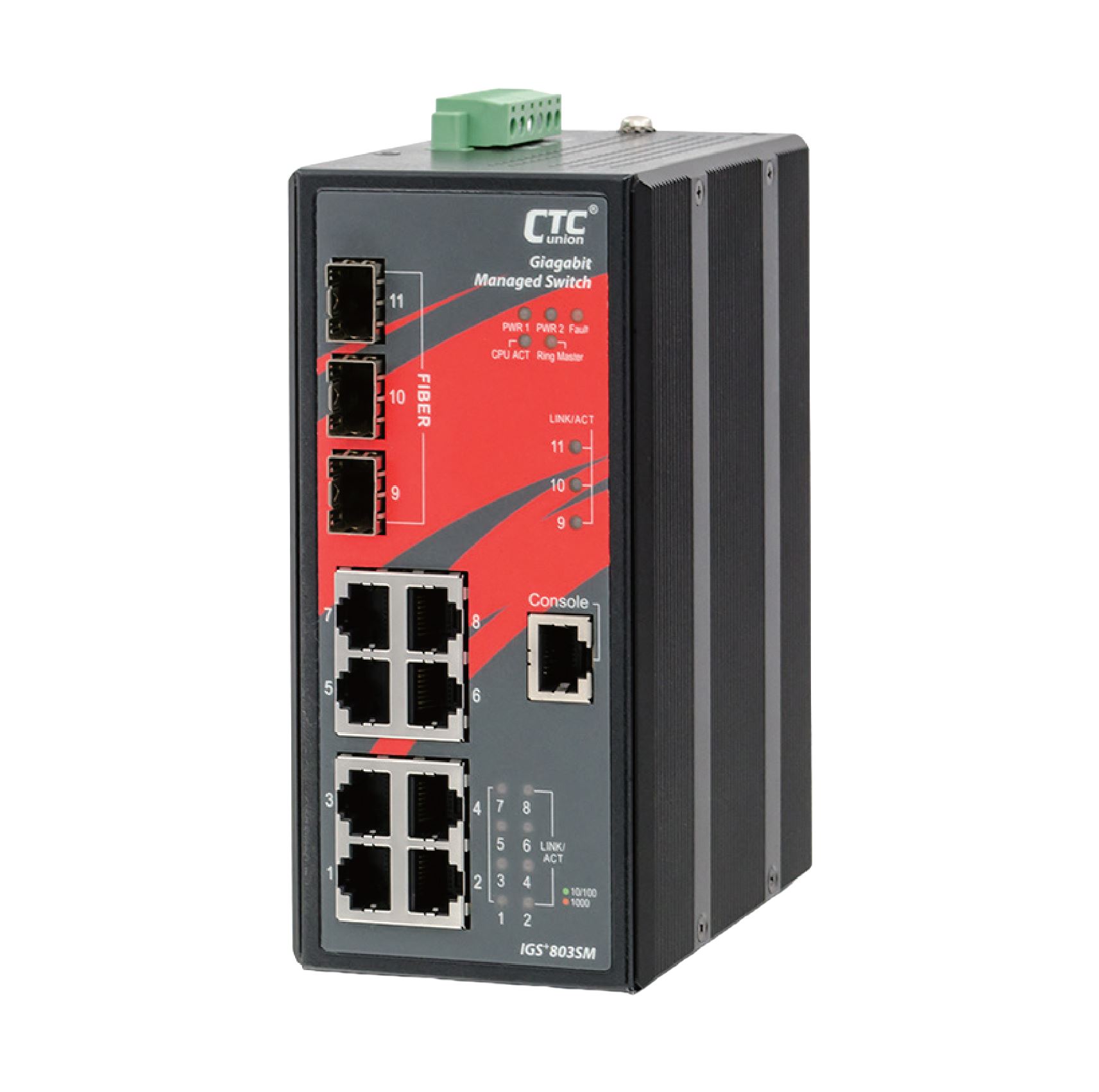

The industrial managed Ethernet switch IGS+803SM has 8 Gigabit UTP ports, equipped with three 100/1000 SFP slots for fiber optic connections to meet the requirements for extended transmission distance, fanless design, high MTBF, 4KV surge protection and supports wide operating temperature, redundant 12/24/48VDC power input, suitable for heavy-duty applications in harsh environments, such as industrial factory automations, data centers, intelligent transportation systems, military and utility market applications where environmental conditions exceed commercial product specifications.

FEATURES:

• Redundant dual DC input power 12/24/48/-48VDC (9.6~60VDC)

• 2.25 kVDC Hi-pot isolation protection for Ethernet ports and power

• 4KV surge protection for UTP and fibre ports

• Provides 5 instances that each can support μ-Ring, μ-Chain or Sub-Ring type for flexible uses.
  (Please see the CTC μ-Ring white paper for more details and more topology applications)

• μ-Ring for Redundant Cabling, recovery time<10ms in 250 devices

• Supports IEEE 1588 PTP V2 for precise time synchronisation to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port

• Supports EMS Management
