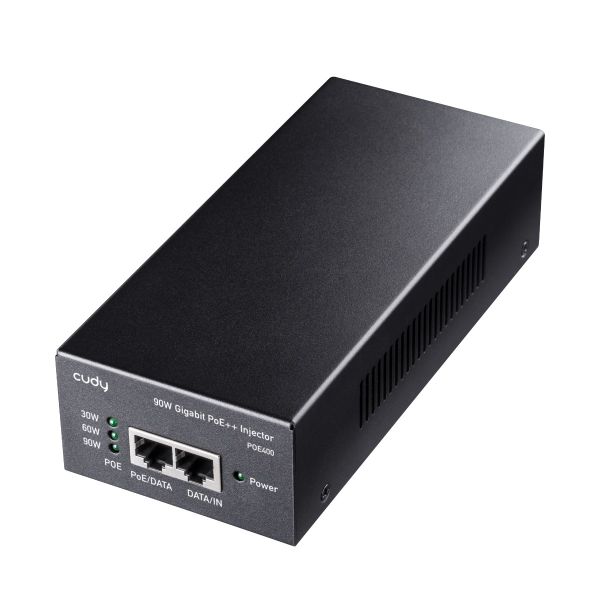

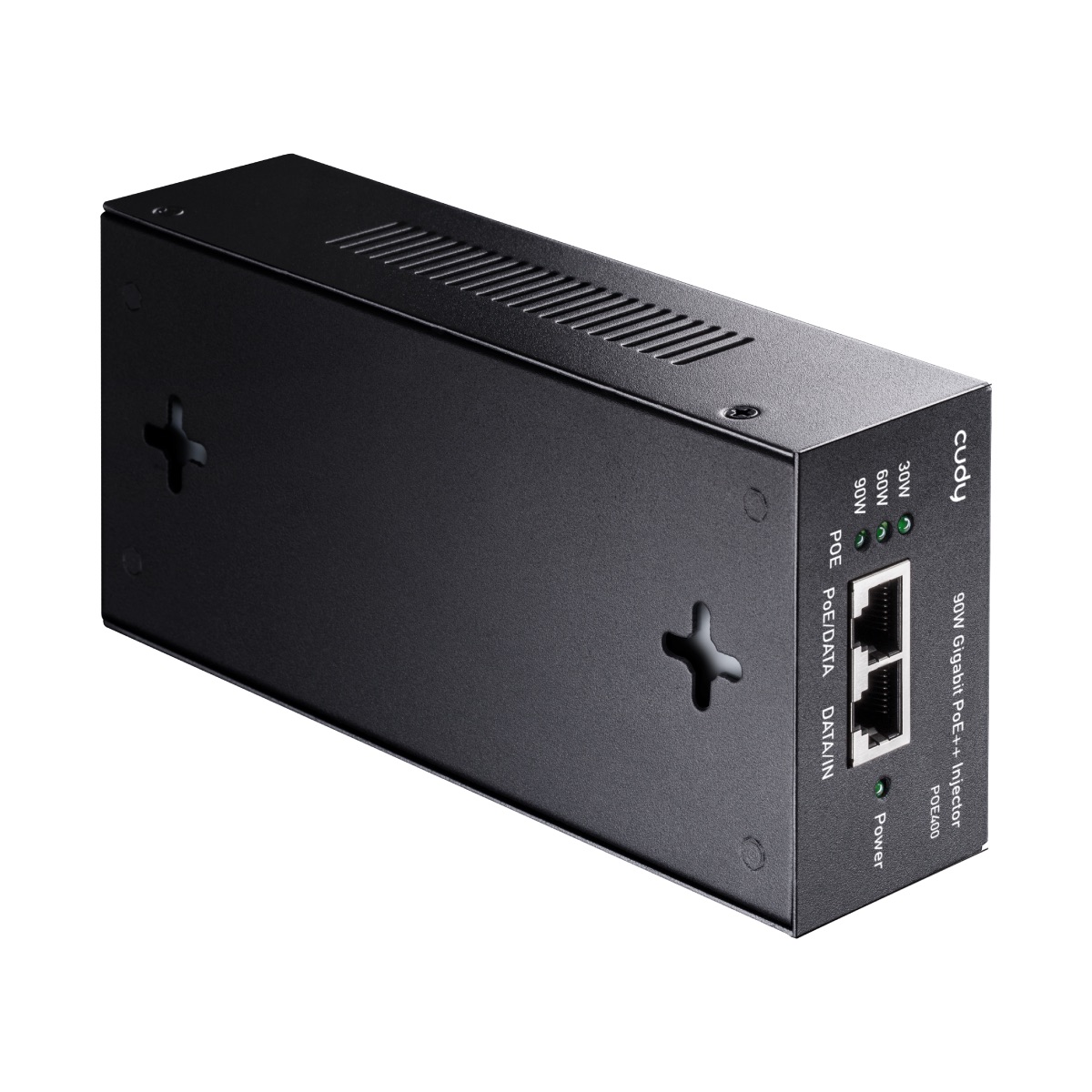

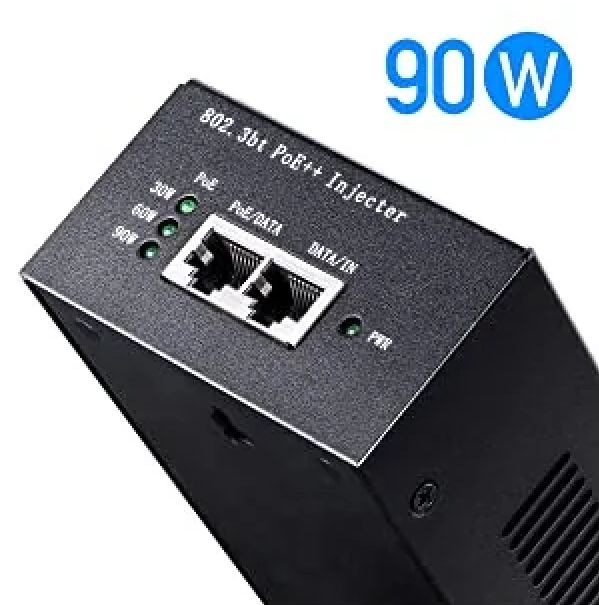

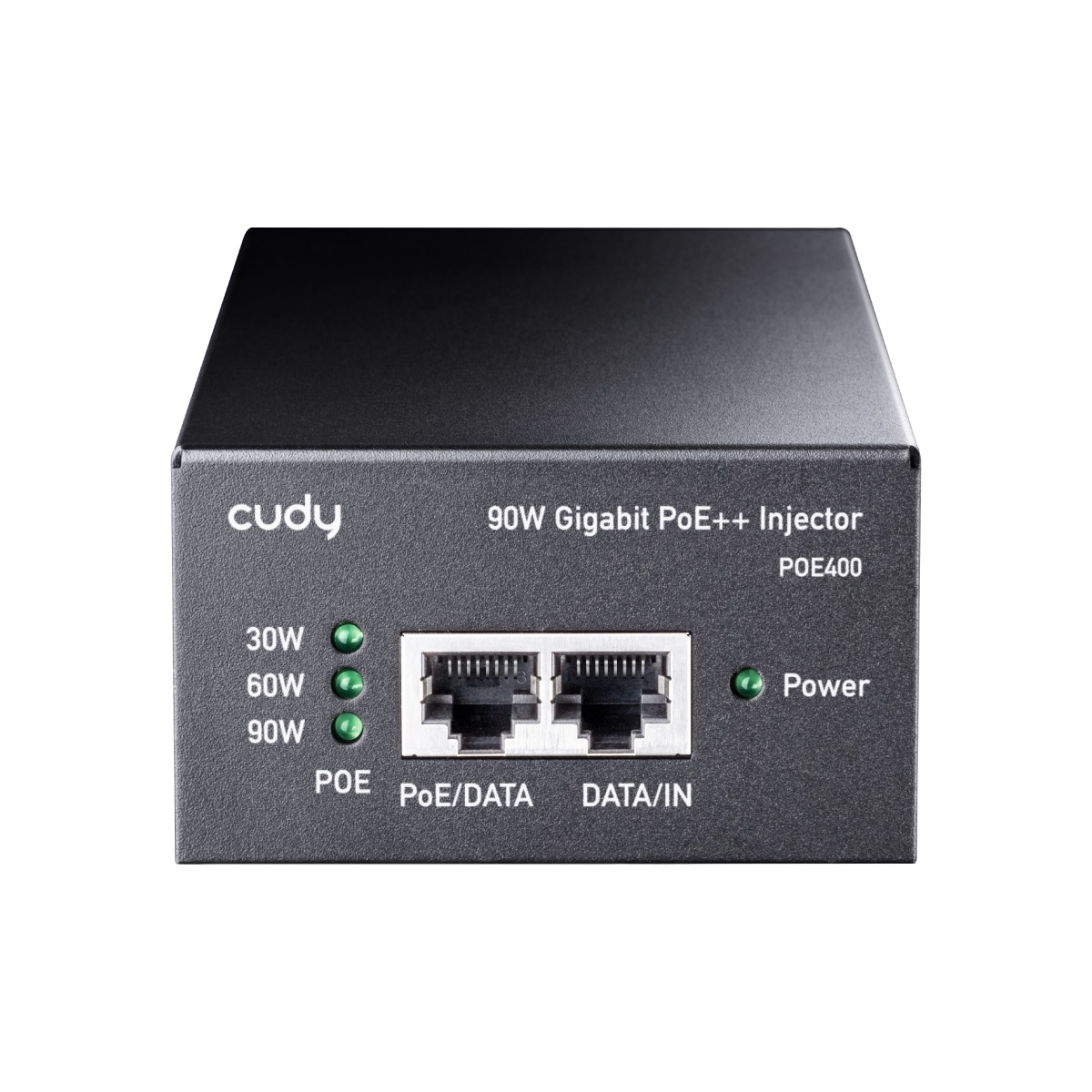

90W Gigabit PoE+ Injector 100m Transmission, Power LED, 802.3at/af.

The PoE Injector is a single port PoE injector offer a compact and cost effective, It can convert standard 100~240V/AC power into lowvoltage. DC that runs over existing LAN cable to power up IEEE 802.3af&at&bt compliant network accessories.Remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations. The PoE Mid-spans no need to connect with external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.

Features:

• Full IEEE 802.3af IEEE 802.3at,IEEE802.3bt Compliant
• Up to 95W of Power on 4-pairs
• Auto-detect of POE IEEE 802.3af IEEE 802.3at, IEEE802.3bt equipment
• Supports 10/100/1000 Base-T applications

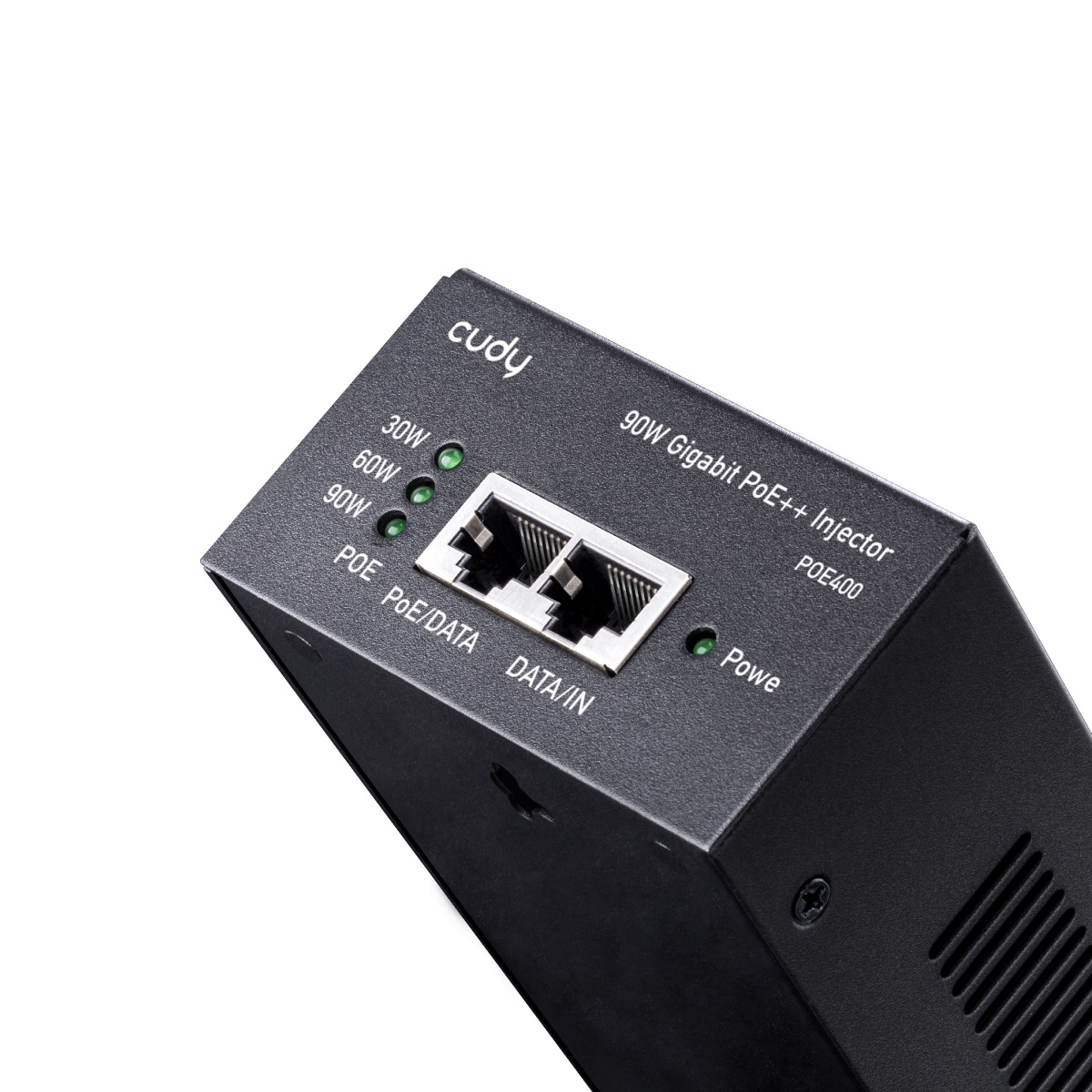

• LED indicators power input & PoE Wattage indication
• Distance up to 100 meters
• Internal AC/DC converter, no need for external power modules
• Easy plug-and-play installation
• GbE In, GbE Out
• 100 m (328 ft)Transmission Distance ¹
• 802.3bt/at/af, Max 90W, 4-Pair
• 4-Pair 1/2- 3/6+ 4/5+ 7/8-
• Surge/ESD Protection

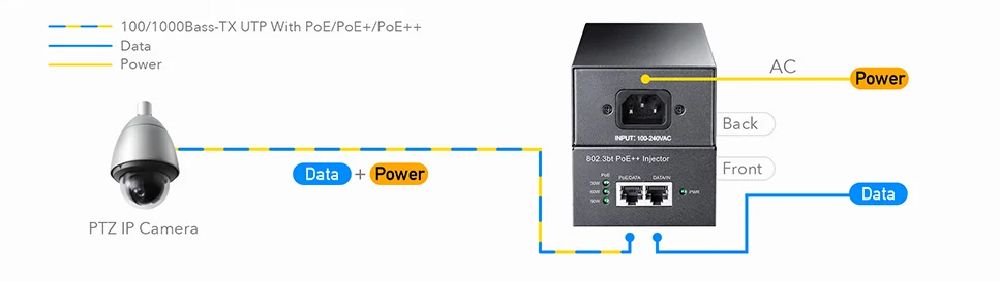

1. Transmission distance is the cable length measured from the uplink switch through the PoE adapter to the downlink device.

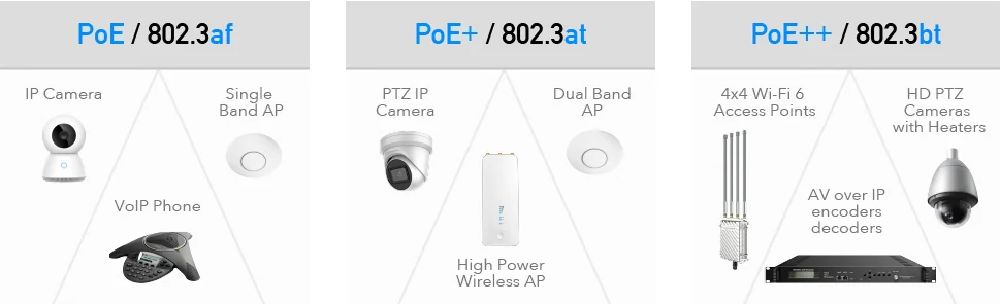

Fully Compatible with PoE, PoE+ & PoE++ Devices

PoE/802.3af

Each PoE port powers up to 15W at a very short distance. Power delivered at a longer distance (up to 100m) is 12.95W. Typical devices needing less than 12.95W are:

• IP Phones with small or no display
• Indoor Wireless 802.11n or 2x2 Wireless 802.11ac Access Points
• Simple IP Cameras

PoE+/802.3at

Each PoE+ port powers up to 20W(2 Pair) or 60W(4 Pair) at a very short distance. Power delivered at a longer distance(up to 100m) is 25.5W or 51W(4 Pair). Typical devices are:

• IP Phones with a large display, video phones, conference systems
• Up to 4x4 Wireless 802.11ac (WiFi 5) or 2x2 802.11ax (WiFi 6) Access Points
• Pan-Tilt-Zoom HD IP Cameras without heaters

PoE++/802.3bt

Each PoE++ port powers up to 60W(2 Pair) or 90W(4 Pair) at a very short distance. Power delivered at a longer distance(up to 100m) is 51W or 71W(4 Pair). Typical devices are:

• Conference systems with a large display
• Up to 4x4 802.11ax (WiFi 6) Access Points
• PTZ HD IP Cameras with heaters
• AV over IP encoders/decoders
• Ceiling tiles LED Lighting
• Large audio speakers

Application Scenarios

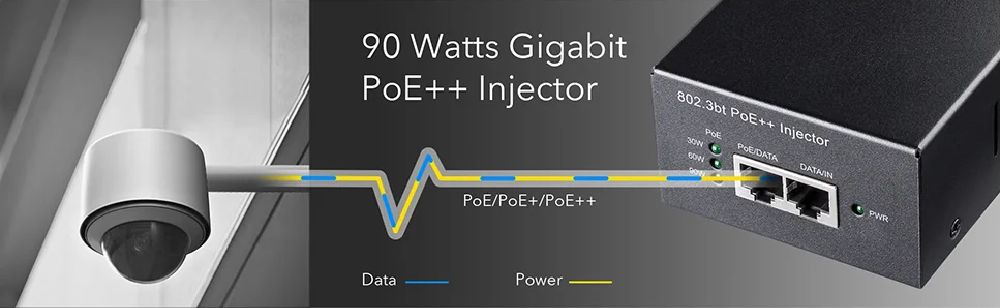

Surveillance

Works with IP Cameras for home & office, small business

VoIP Conference Call

Works with VoIP phones for business conferences

Wi-Fi Coverage

Works with WiFi APs for office & business

Cudy 90W Gigabit 802.11bt/at/af PoE+ Injector PoE Output: Pin Assignment & Polarity: 1/2 (1), 3/6 (+), 4/5 (+), 7/8 (-) Output Power Voltage: Typical: 56V, Supports any 802.3 bt/802.3at/802.3af device User Port Power Output: 90W Max Protection: Overcurrent protection  Overload protection Over-voltage protection Anti-interference protection

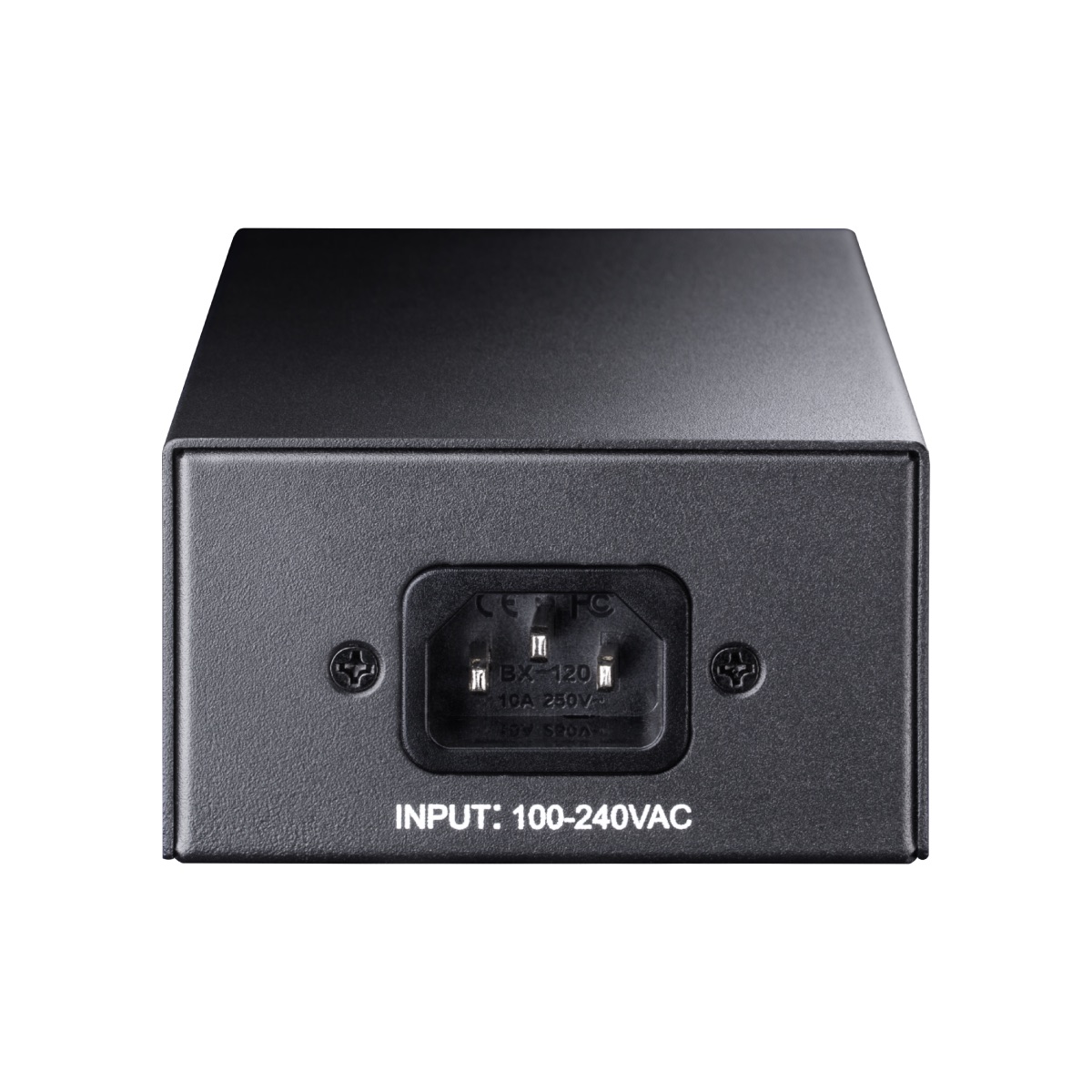

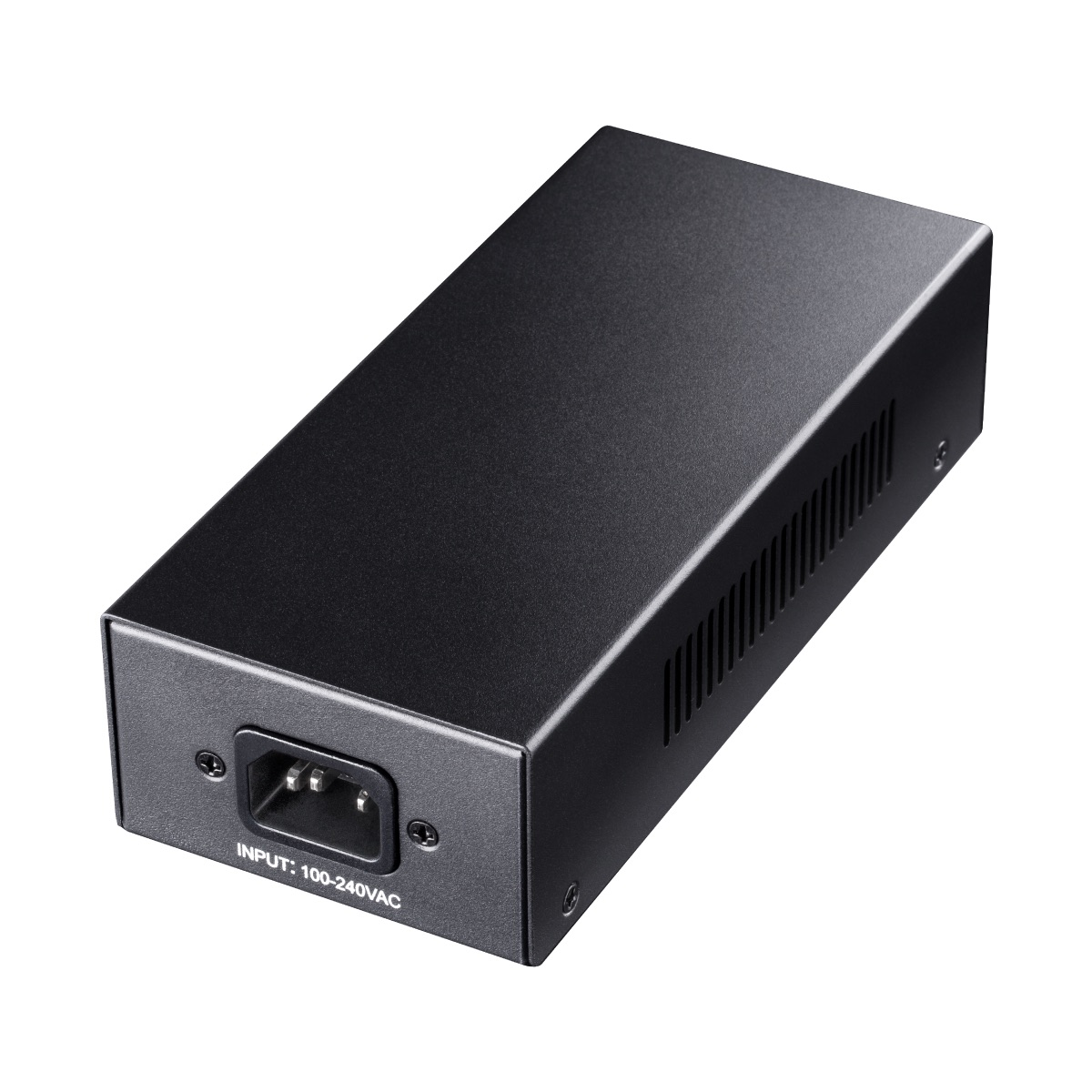

Input Power Requirements: AC Input Voltage: 100~240V AC Input Current: 1A 100~240V AC Frequency: 50~60Hz Environmental Conditions: Operating Ambient Temperature: 0~40°C Operating Humidity: Maximum 85%, Non-condensing Storage Temperature: -40~40°C Storage Humidity: Maximum 90%, Non-condensing
