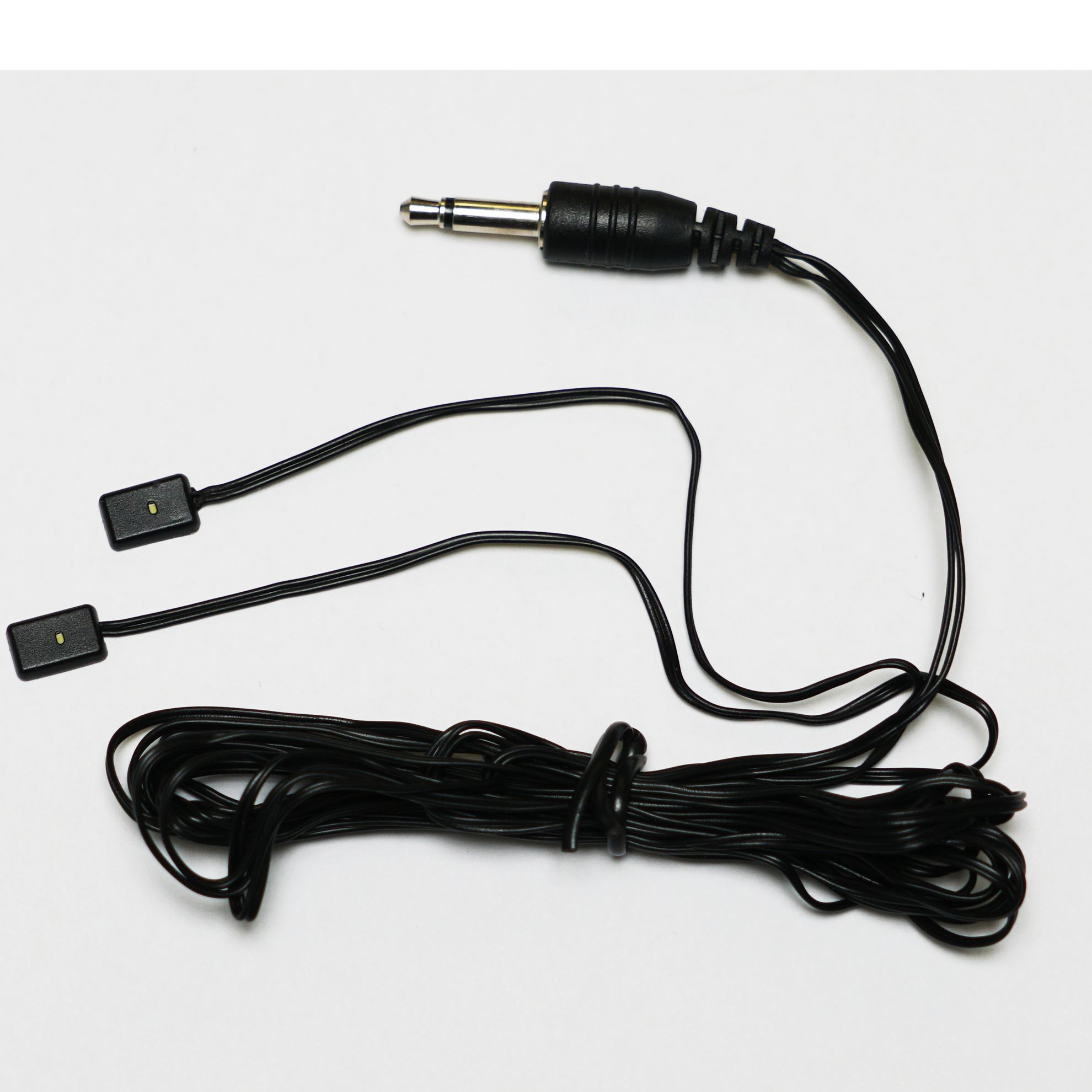

The Axium EM series emitters needed to be small to match the IRFX3, so that is how we made them, tiny discrete and effective. Each model either uses a non-blinking infra-red LED with high output or a visible red LED which has lower IR emission and the advantage of visible operation. Both the diode variants are available in a Dual or Single configuration. The emitters are housed in a miniature low profile plastic injection moulded case with a 3M adhesive strip applied to the back, with additional adhesive tabs provided in the packaging. As the use of a boot to cover the emitter can assist in preventing IR system issues, we provide one for each emitter.

FEATURES:

• Only 1.88mm high
• Blink, single or dual emitters types
• Emitters have high output 940nm Infrared emission
• Visible White feedback LED
  • Black feedback cover pad supplied
• 3m cable with 3.5mm plug
• Micro-sized low profile with a tiny footprint
• Strong acrylic adhesive mounts supplied including spares
• IR dispersion angle <25°
• Maximum current: 20mA
• Emitter Case dimensions
  • Width - 6.1mm
  • Length- 9.4mm
  • Height - 1.88mm

 Designed for 12V operation, also compatible with some 5V IR products.
