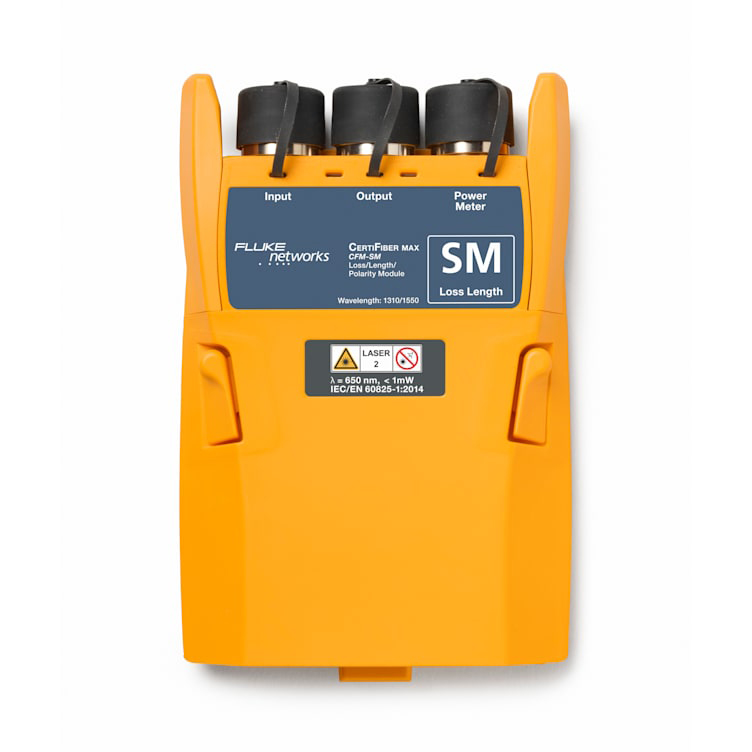

CertiFiber Max Singlemode OLT Kit, No Wi-FI

CertiFiber Max single-mode multi-fibre optical loss test set, including two Versiv 2 mainframes without Wi-Fi, two CertiFiber Max modules, and required accessories for certifying length, loss, and polarity of pinned MPO 12 cables.

Maximise your multi-fibre certification efficiency with the CertiFiber™ Max OLTS. Measure loss, length, and polarity of up to 24 fibres in one second. Field-replaceable UniPort™ adapters connect directly to MPO, MMC, pinned and unpinned configurations, and more, giving you maximum flexibility. Set up your projects right the first time with the Versiv™ ProjX management system, or remotely with LinkWare™ Live. Minimise measurement uncertainty with a 1-jumper reference setting and an integrated timer that tracks time since the reference was set, and a counter for the number of times a Test Reference cord has been used. Troubleshoot fast with a built-in multi-fibre VFL, duplex power meter, and optional end face inspection.

And it’s all on the powerful, proven Versiv platform. With more than 10,000 Certified Cabling Test Technicians (CCTT) in the field, the CertiFiber Max OLTS is already part of a familiar, trusted tool set that’s built by Fluke, rugged, supported by Fluke expertise, and backed by gold-standard Fluke service and experience.

Features:

• NON-WIFI VERSION - only available for sale to the US government
• Single-mode multi-fibre optical loss test set
• Includes two Versiv mainframes with CertiFiber Max modules
• Includes required accessories for certifying length, loss, and polarity of pinned MPO 12 cables
• Several packages available with different accessories - see below for more information
• Measure loss, length, and polarity in one second
• CertiFiber Max is part of the modular Versiv / LinkWare cabling certification system
• Field replaceable Uni-Port adapters connect to existing (MPO, MMC) pinned and unpinned, and future connector/pin configurations
• To reduce uncertainty, tracks time since reference setting and count of tests for TRCs to ensure compliance

CertiFiber Max Single-mode OLTS Test Set with two Versiv mains, no Wi-Fi. Includes:
