CertiFiber Max Singlemode OLTS w/DBL End INSP

CertiFiber Max single-mode multi-fibre optical loss test set, including two Versiv 2 mainframes with Wi-Fi, two CertiFiber Max modules, required accessories for certifying length, loss, and polarity of pinned MPO 12 cables and two FiberInspector Ultra inspection cameras.

Maximise your multi-fibre certification efficiency with the CertiFiber™ Max OLTS. Measure loss, length, and polarity of up to 24 fibres in one second. Field-replaceable UniPort™ adapters connect directly to MPO, MMC, pinned and unpinned configurations, and more, giving you maximum flexibility. Set up your projects right the first time with the Versiv™ ProjX management system, or remotely with LinkWare™ Live. Minimise measurement uncertainty with a 1-jumper reference setting and an integrated timer that tracks time since the reference was set, and a counter for the number of times a test reference cord has been used. Troubleshoot fast with a built-in multi-fibre VFL, duplex power meter, and optional end-face inspection.

And it’s all on the powerful, proven Versiv platform. With more than 10,000 Certified Cabling Test Technicians (CCTT) in the field, the CertiFiber Max OLTS is already part of a familiar, trusted tool set that’s built by Fluke, rugged, supported by Fluke expertise, and backed by gold-standard Fluke service and experience.

Features:

• Single-mode, multi-fibre optical loss test set

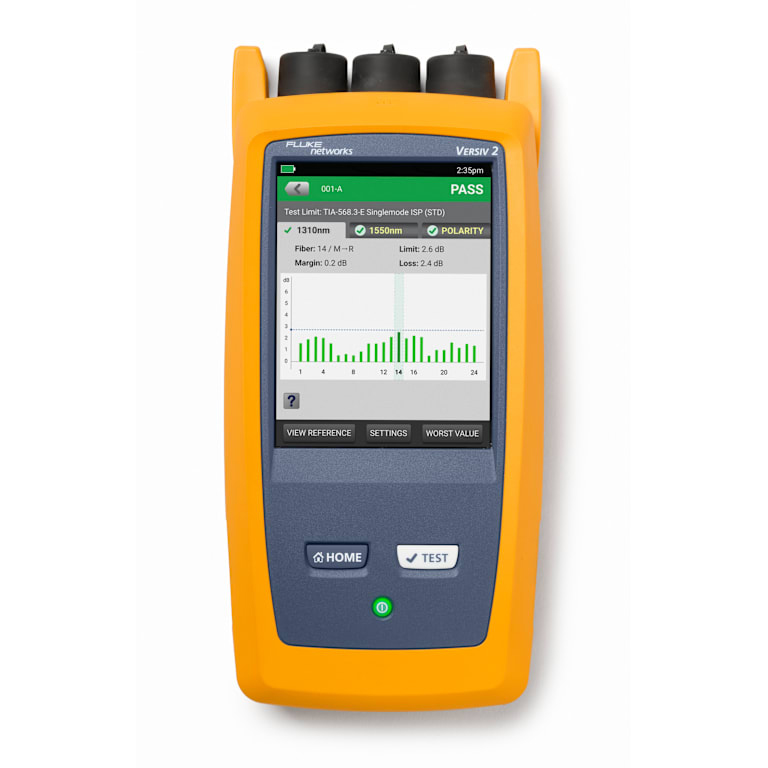

• Includes two Versiv® mainframes fitted with CertiFiber® Max modules
• Supplied with two Fibre Inspection Ultra™ cameras
• Includes all required accessories to certify length, loss, and polarity of pinned MPO-12 fibre cables
• Available in multiple package options with varying accessory sets (see below for details)
• Measures loss, length, and polarity in as little as one second
• CertiFiber Max forms part of the modular Versiv® / LinkWare™ cabling certification system
• Field-replaceable Uni-Port™ adapters support existing MPO and MMC connectors (pinned and unpinned) and are ready for future connector and pin configurations
• Reduces measurement uncertainty by tracking time since reference setting and the number of tests performed on TRCs to help ensure standards compliance

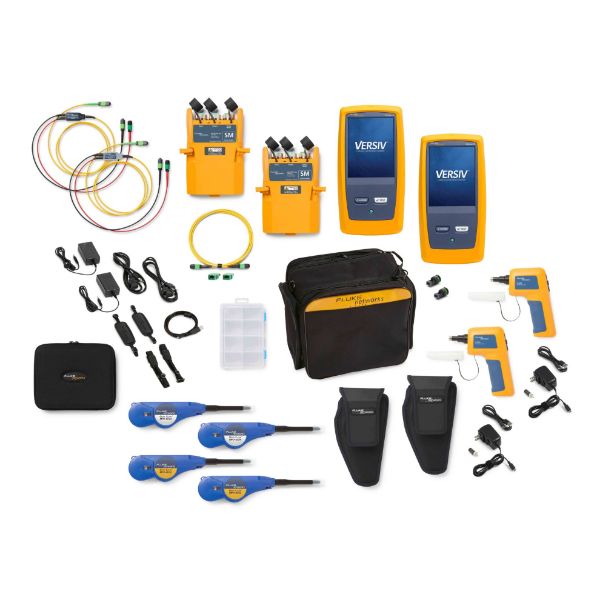

CertiFiber Max Single-mode OLTS Test Set with two Versiv mains and inspection cameras. Includes:

• 2x Certifiber Max Module
• Reference Guide
• Safety Manual
• Certificates in Envelope
• TRC Cable Set in Bag
• Verify Cable in Bag
• Product Registration Card
• Plastic Case
• OSS Supplement Paperwork
• Hand Strap
• Cube Soft Case
• Hang Strap
• USB Cable
• Carry Case for TRC and Verify Cables
• 2x Power Supply
• 2x Keyless adapter for mpo 12/24, 16/32 fibers
• 2x MPO 12 or 24 APC tip for patch cords

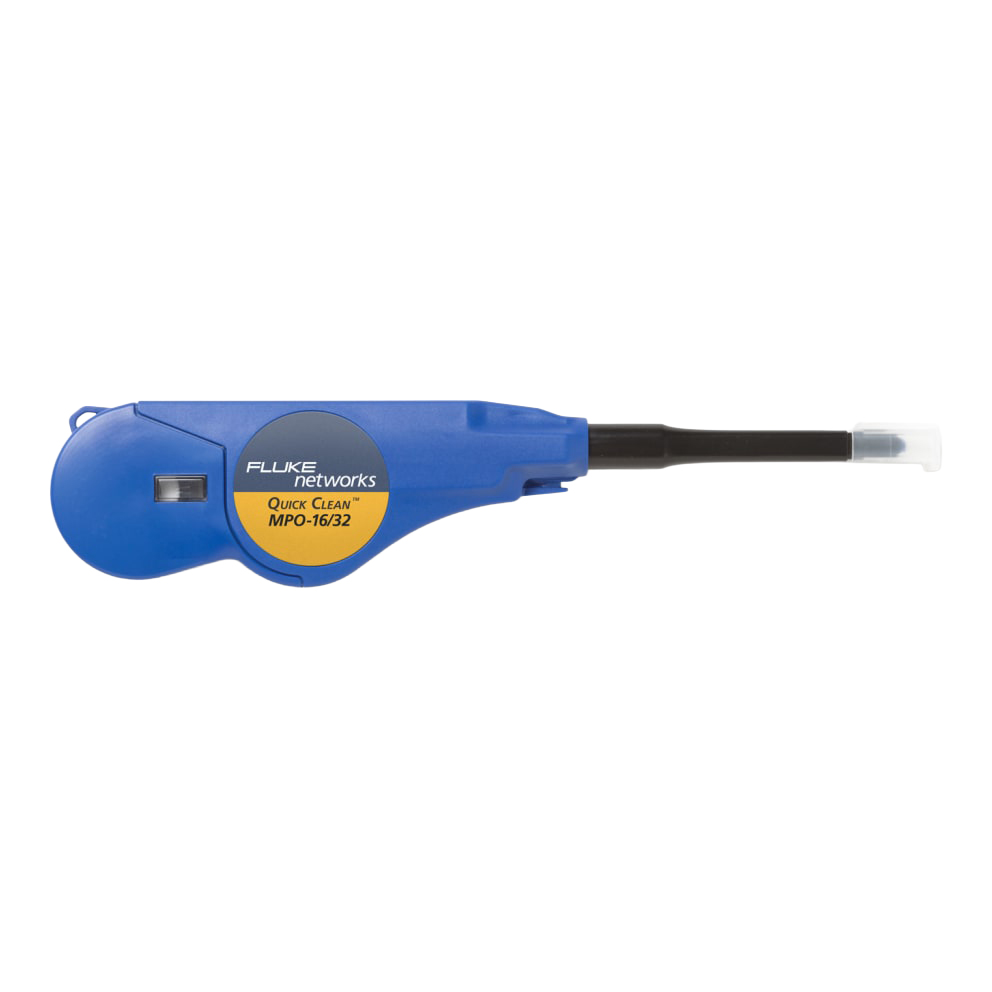

• 2x fibre cleaner for MPO/MTP 16 connector
• 2x MPO adapter coupler for 16/32 fibre
• Quick clean instruction guide

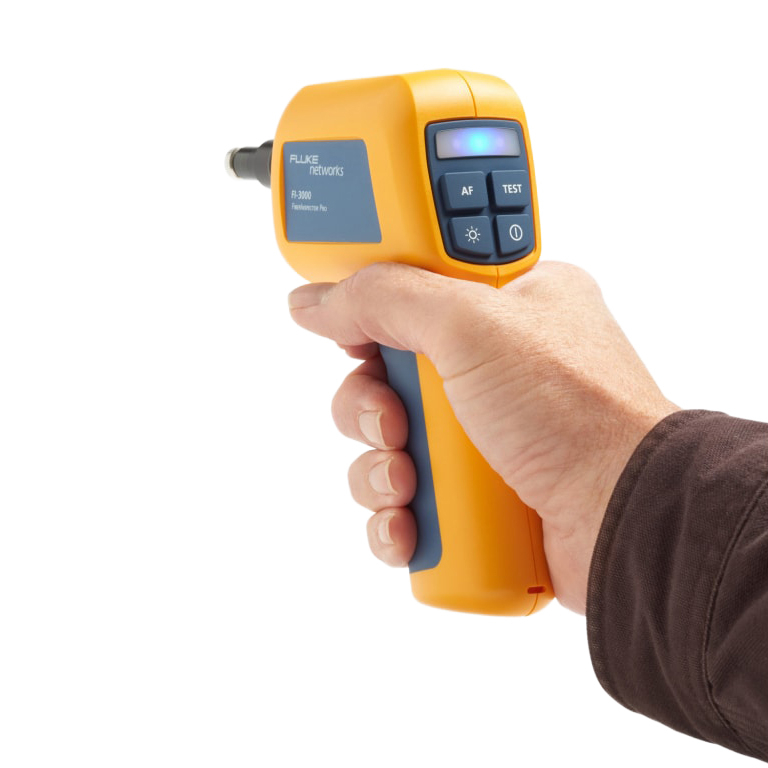

• 2x MPO fibre camera in holster
• 2x 5v power supply for the camera
• 2x MTP adapter
• 2x 6-compartment box
• 2x 4-compartment box
• 2x Getting started guide fi-3000
• 2x MTP adapter
• 2x Wrist strap
• 2x Power supply adapter kit

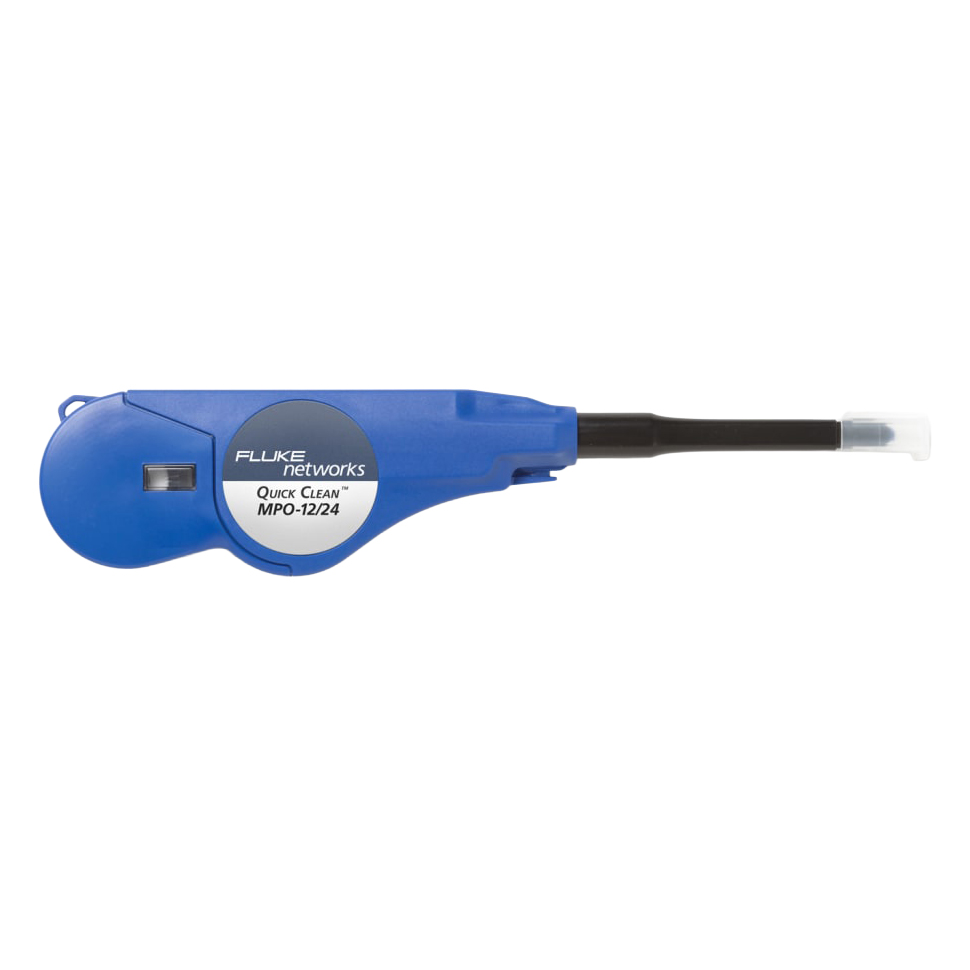

• 2x MTP/MPO cleaner for 12 connectors
• 2x Quick clean instruction guide
• 2x Camera MPO to single tip adapter
• Versiv-XL cube case, accessory cases, and documentation
