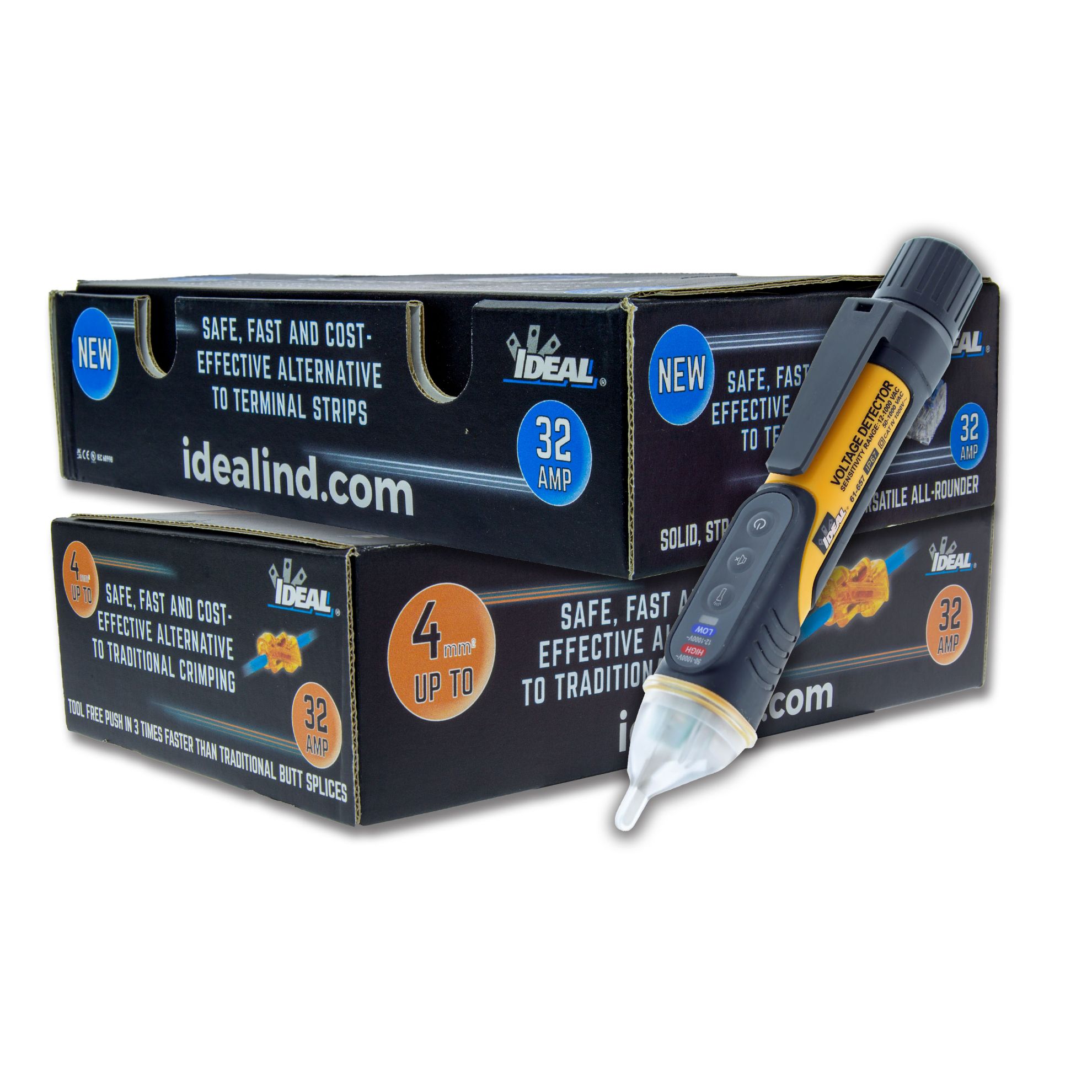

IDL30-6099 + IDL30-6042 + IDL61-657

IDEAL INDUSTRIES 32A Gen II Lever Wire Connector Starter Kit. 6 Boxes 2 Each of 2,3 and 5 Port. Suitable for Wire up to 4mm2.

GEN II LEVER WIRE CONNECTORS

The IDEAL Lever connectors utilise the latest connection technologies and can accommodate multiple wires of different types of sizes.

It offers a fast, simple and cost-effective alternative to terminal strips allowing electrical professionals to save time and money on site while achieving easier, more consistent terminations for wires up to 4mm2 (12AWG) and 32 Amps.

FEATURES:

• For use in all applications up to 32A including lighting, access control, radial and final ring circuits
• Releasable connector – for solid, stranded and flexible wires
• Innovative levers – opens in the opposite direction of insertion points
• Compact design – suits tight spaces
• Easy to use - no need to lift the levers when using on solid wire
• Continuity check port - for testing
• Clear shell - allows for verification of connection
• Secure your cables in seconds – no screwdriver, no crimping, just strip, push, connect
• Wire clamping range:
  • 0.2 mm² to 4.0 mm² (24 - 12 AWG for solid and rigid stranded wires (7 strands)
  • 0.14 mm² to 4.0 mm² (24 - 12 AWG) for flexible wires
• Ratings:
  • IEC 60998: 32A | 450V | 85° C (ambient)
  • UL 486C: 20A |600V | 105° C (working)
• Strip Length: 11-12 mm | 0.45"
• Compliant with AS/NZS IEC 60998.1 and AS/NZS 60998.2.2 connecting device standards and UL 486C
• CE, UKCA, UL and ENEC approved

IDEAL INDUSTRIES 32A SpliceLine In-Line Wire Connector Starter Kit. 6 Boxes of 100 Pieces. Suitable for Wire up to 4mm2 Solid and 2.5mm2 Stranded.

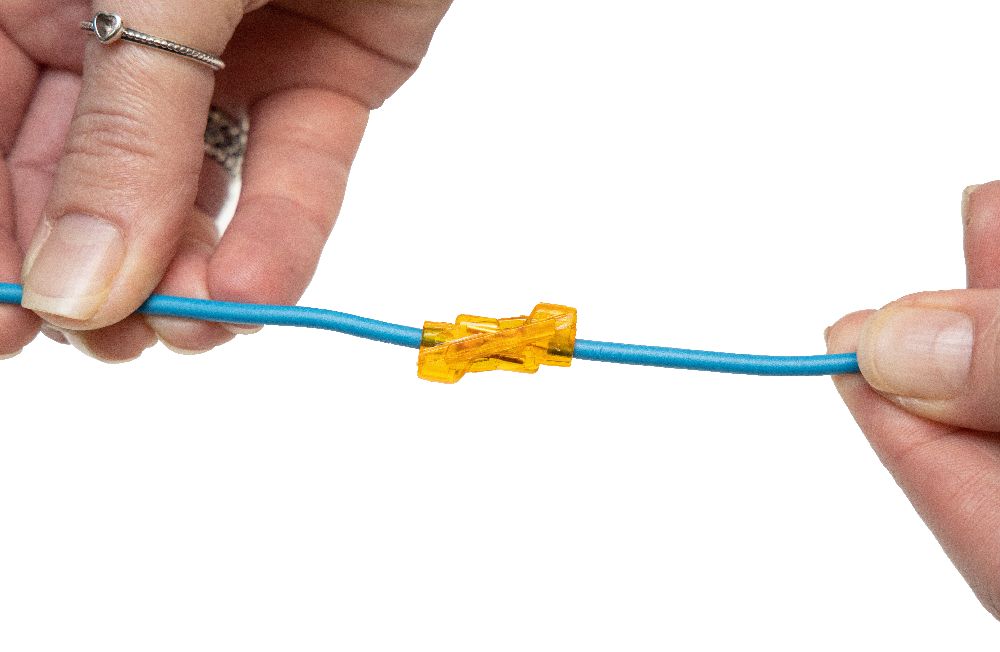

The SpliceLine^® in-line wire connector provides a crimp-free, solderless butt Splice.

AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.2 connecting device standards, the two-port model accepts up to 4.0 mm² solid wire, allowing one connector to do the job of multiple through-crimps.

Its small size and tool-free application make SpliceLine^®  the obvious solution for connecting wires in a broad range of applications, including prefabricated wiring, lighting and ring main circuits.

Electricians are often confronted with an existing wire that has been cut too short by the previous contractor to safely install a socket, light switch or lighting fixture. In these situations, it is often very difficult, if not impossible, to use a crimp tool due to space restrictions.

With SpliceLine^®, however, the short wire is simply pushed into one end of the connector, with the extra length of wire being pushed into the other open end. It now takes less than 10 seconds to join two wires together.

• 32A – 450V | 0.5mm² - 4.0mm² for solid |1.0 mm² - 2.5 mm² for stranded
• Faster alternative to traditional butt splices
• Tool-free, push-in through crimp
• Slim design fits through standard knockouts
• Perfect for lengthening wire
• Transparent polycarbonate window for visual inspection of the connection
• Wide wire range from 0.5mm² to 4.0mm² for solid and 1.0 mm² to 2.5 mm²  for stranded
• Conform to AS/NZS IEC 60998.1 and AS/NZS IEC 60998.2.2 connecting device standards
• Rating: IEC 60998: 32A | 450V | 105°C max and UL 486 C: 20A| 600V |105°C

The IDEAL 61-657 is CAT IV 1000V AC, IP67 UL Listed, Dual Range Non-Contact Voltage Tester that automatically detects and indicates the presence of voltages between 12V to 1000V AC (Low Range) and 50V to 1000V AC (High Range) with the push of a button. The tester can sustain a drop from 2m and provides non-contact detection of voltage through an antenna enclosed in plastic at the tip of the tester which senses the presence of the electromagnetic field present around live conductors. The tip is illuminated by a green LED when powered on and switches to a red flashing LED, and audible beeps that increase in frequency as the voltage level increases. The tester is powered by two 1.5V AAA batteries and features an in-tip LED flashlight, an audible disable function, a lanyard tie-off point, an auto power-off function and a low battery indication.

• UL Certified CAT IV 1000V AC, 12V-1000V AC Low Range, 50 to 1000 V AC High Range
• Senses 2 voltage ranges from 12V to 1000V AC (Low ) or 50 to 1000V AC (High) allowing detection of low voltages (doorbells, thermostats, irrigation wiring, etc.) and standard voltage in tamper-resistant outlets when the tip is located near the Hot receptacle and/or Hot Connection point on the outlet.
• Dust Tight and Waterproof (1m for 30 minutes) Industrial Design makes this tester easy to grip and capable of sustaining a drop from 2m.
• An LED Flashlight in the tip operates independently of the tester functions and can be used to illuminate the work area. Press the Flashlight Button to turn it On/Off. The tester is set to Flashlight Off. The Flashlight will Auto Power Off after 5 minutes.
• Audible Notification Disable - The tester can be operated with a visual-only indication of voltage when working in a noise-sensitive/noise-restricted area with the simple press of a speaker button.
• Auto Power Off - After 10 minutes of inactivity (no button pressed and no signals detected), the tester will emit one long beep (~0.5s) and then shut off. Note: if the flashlight is on, it will be also shut off.
• Low Battery Indication - If the battery voltage is less than around 2.4V, the green LED in the tip will flash 3 times and the buzzer will send out one long beep, then turn off the device.
