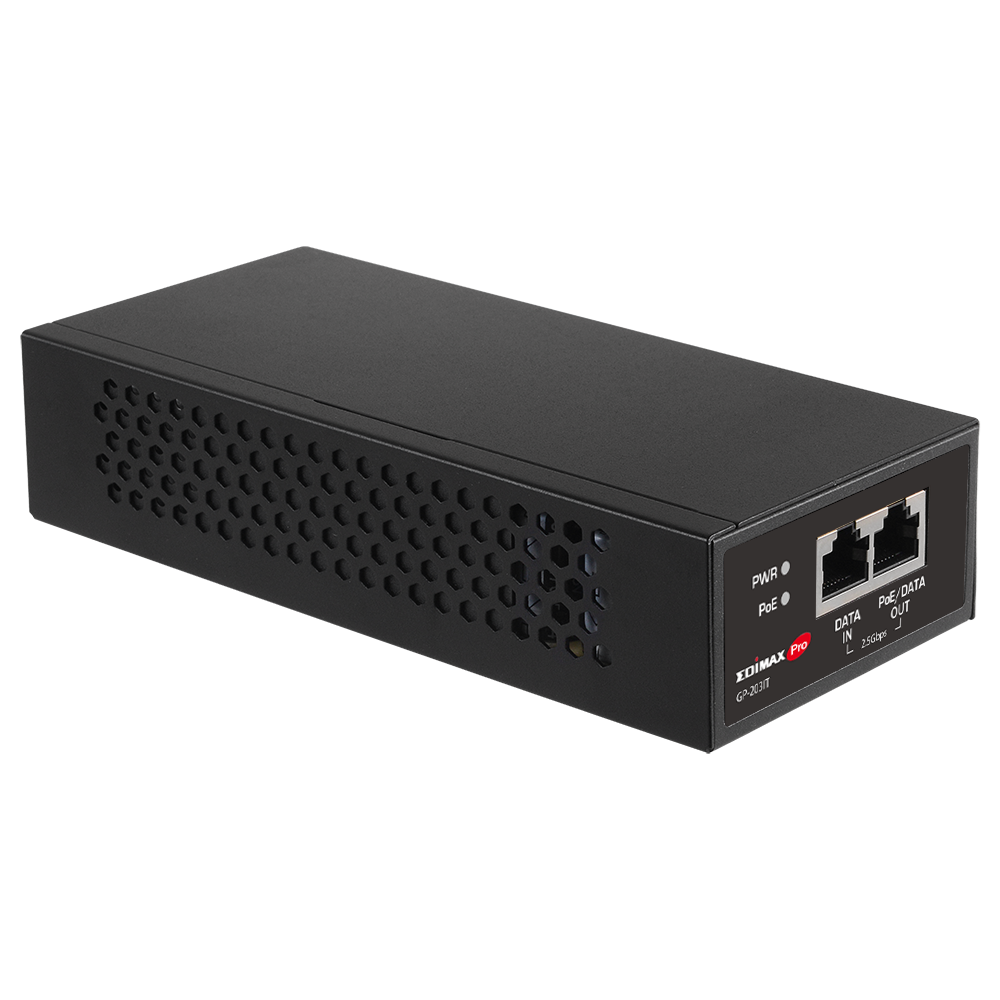

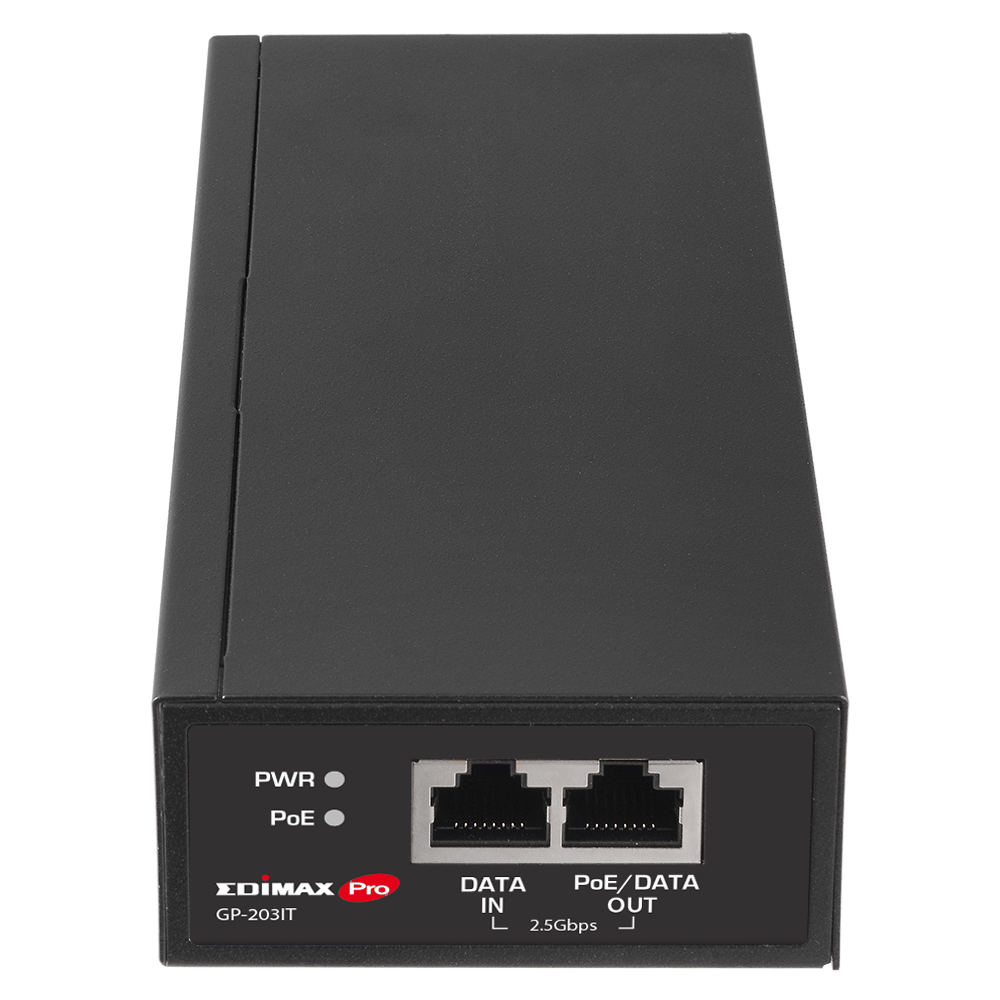

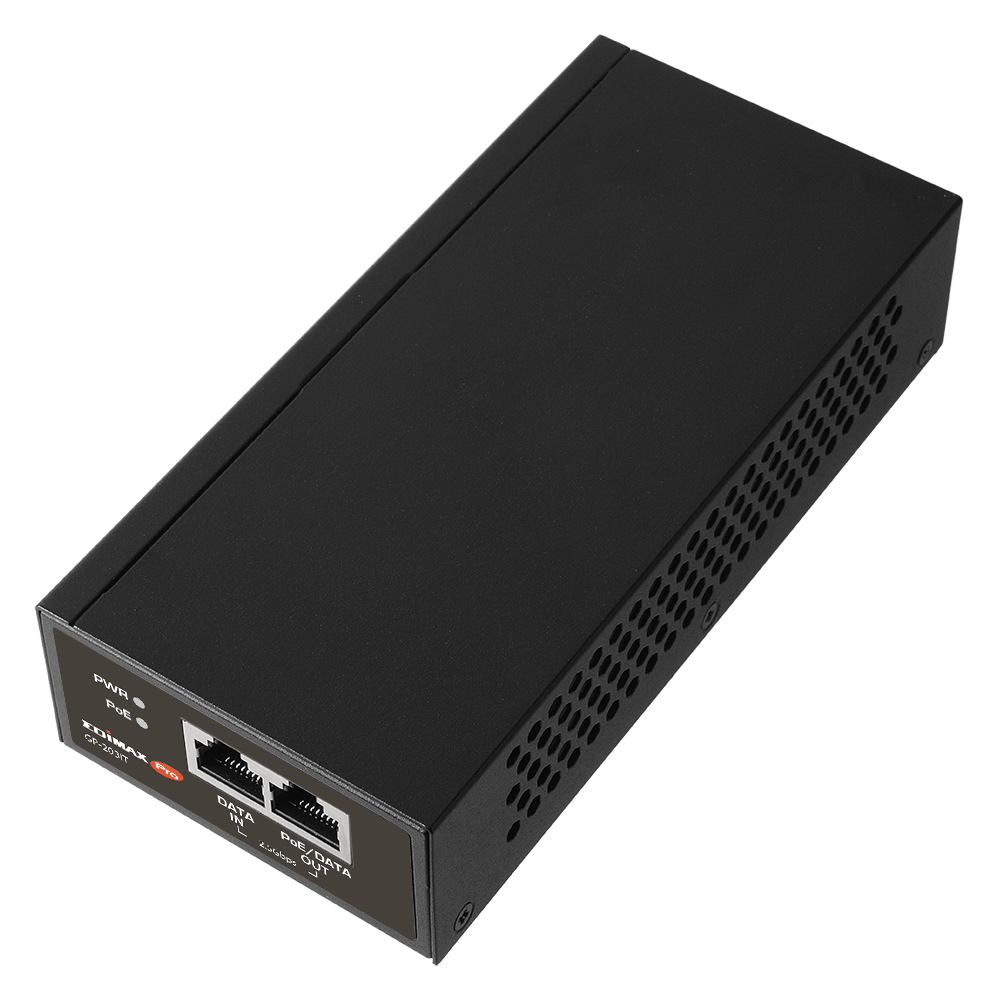

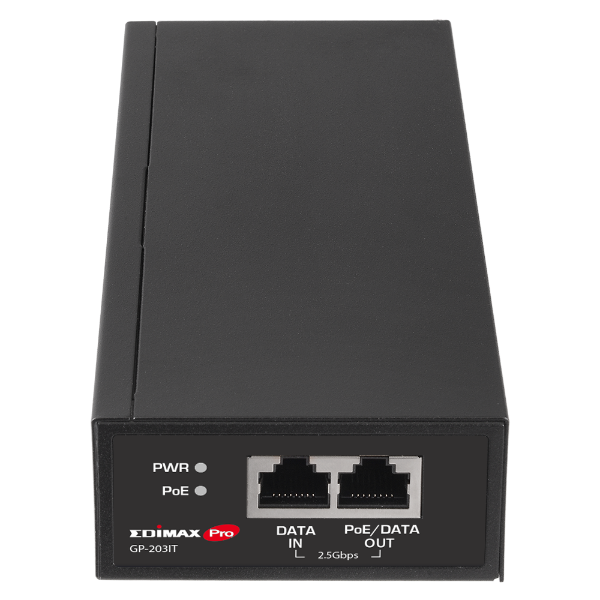

The Edimax GP-203IT is a Power over Ethernet (PoE) injector that not only delivers a cost-effective solution for power distribution but also provides a seamless way of deployment on the existing LAN infrastructure. With the use of power injectors, DC power of up to 90W based on the IEEE 802.3bt standard and the data that comes from a non-PoE switch or router are merged and then transmitted to the remote IEEE 802.3af/at/bt compliant products located without power outlet through the Ethernet cabling. Hence, the easy plug-and-play GP-203IT 2.5Gigabit PoE++ injector preserves your investment in hardware upgrades without the need for spending on extra PoE switches and deploying power cables.

Features:

• Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt Power over Ethernet (PoE) Standards
• Adds PoE capability to a non-PoE Ethernet switch or router
• 2.5Gigabit LAN ports provide high-speed connectivity
• Supply PoE output 95W to ensure the Powered Device (PD) is able to be powered up to 90W
• PoE short circuit protection to safeguard network devices
• Delivers power and data to PoE devices from up to 100 meters (328 feet) over a single Ethernet cable
• Reduces installation and equipment costs
• Easy plug-and-play desktop or wall-mounted installation

Convert Non-PoE Gigabit to PoE++

Plug-and-Play, Flexible Wall-Mount Installation

High Power PoE Port

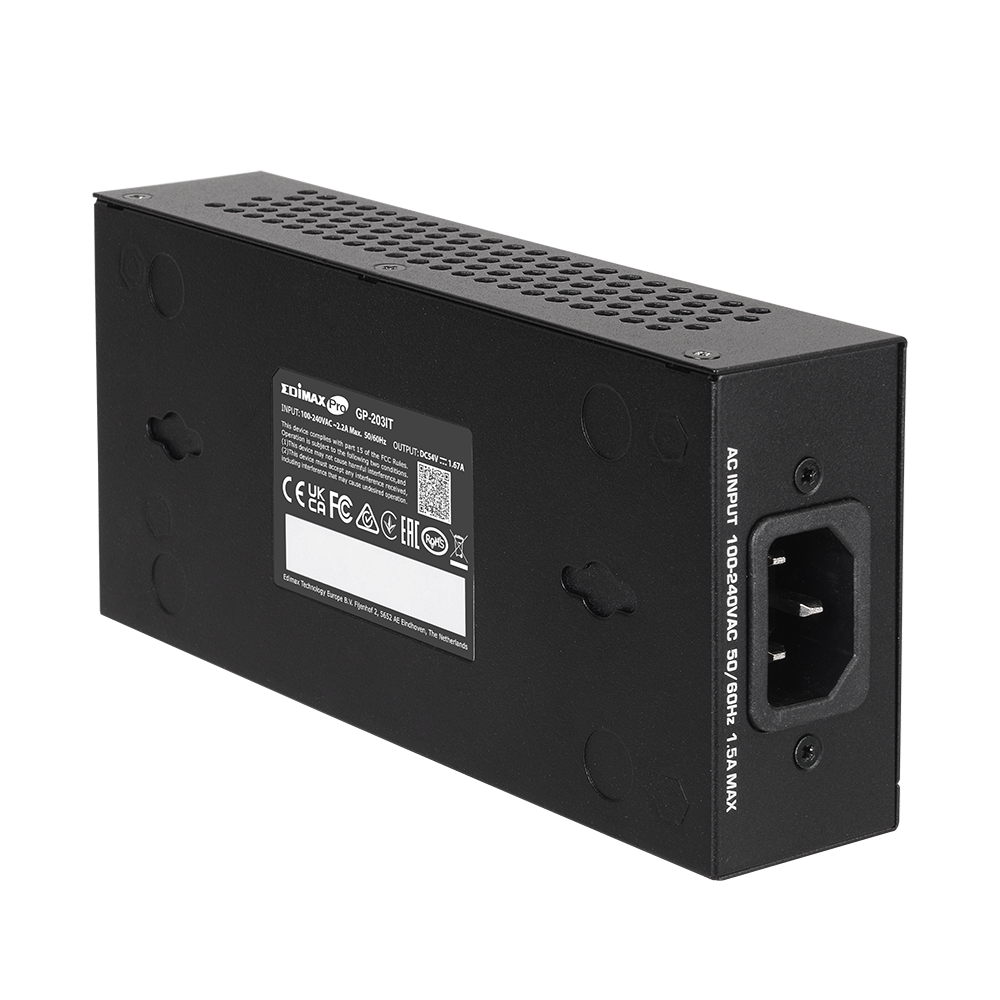

Built-in 90W power supply, it connects directly to the outlet through the power cord. It does not require an external large power adapter, making installation easier and saving space.

2.5 Gigabit Ports Ensure Faster Connections

Both the 10/100/1000/2500 Mbps input and output port ensure faster, more reliable connections for all applications. Delivering power up to 100 meters (328ft.), perfect for IP cameras or access point deployment in large areas.

Easy Plug-and-Play

Just plug the Ethernet enabled device into the injector. No additional cables, software setup or configuration is required.

Fast and Simple Installation

Flexible Mounting Options
The convenient wall-mounting design saves space for a simple installation.

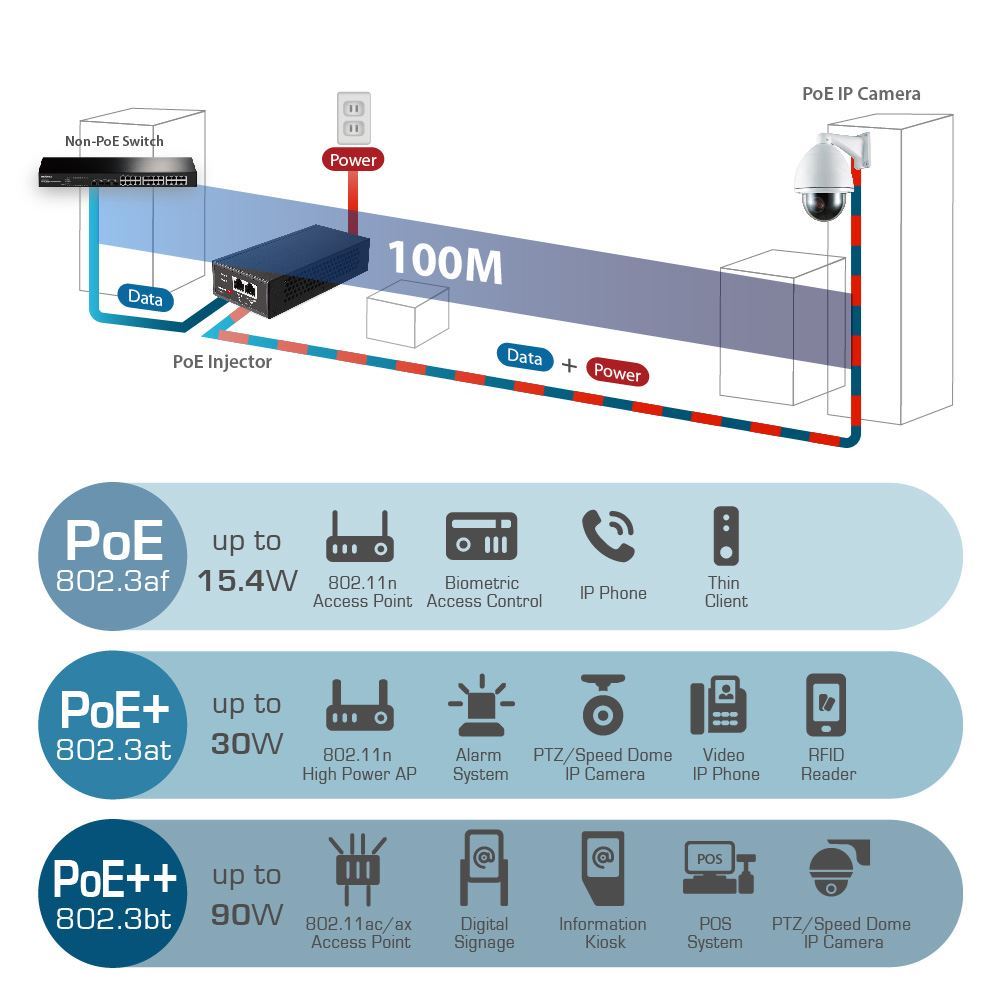

Extends High Power PoE++ for PTZ Camera over 328ft

Power Your PoE Devices

Complies with IEEE 802.3af (PoE), IEEE 802.3at (PoE+) and IEEE 802.3bt (PoE++) Standards and supports PoE PD (Power Device) up to 90W.

IP Surveillance

IP surveillance camera is now ubiquitous. This PoE can be supported with only one LAN cable which enables fast deployment and easy repositioning for business, office, residential environments.

Digital Signage

Digital signage can quickly transmit information in schools, hospitals, department stores, stations, airports, and subways, and the content can be updated quickly to enhance users' real-time information.

Other PoE Devices

Other PoE-enabled devices such as POS System, Information Kiosk, RFID readers, access controls, thin clients, alarms or sensors, benefits easy and cost-saving installation even when it is away from AC outlets.
